Product Details
Product Description
Product Description

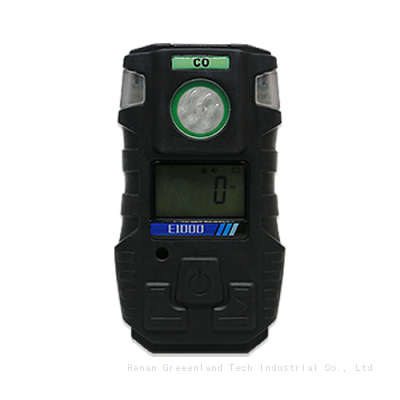

Portable Gas Detector Description
E1000 is a portable rechargeable single gas detector. It can detect the concentration of combustible gases, oxygen and toxic gases in the surrounding environment, and send out information when an abnormality occurs. It’s easy for replacement and maintenance by the user himself with adopting smart sensor module.
It is applicable to explosion-proof places: teelworks, petrochemical plant, oil industry, shipbuilding yard, sewage treatment plant, mine, power supply works etc.
Portable Gas Detector Key features
Real-time clock
Smart interchangeable sensor module
Calibration point adjustable
Two alarm level
STEL alarm and TWA alarm for toxic gases
Visual, audible, vibrating alarm
Self protection against high concentration combustible gas
Low battery alert
Data uploading
Password management
Self-test when power on
Self-diagnostic and self-correction function
GPS, GPRS and Man-down function optional
Portable Gas Detector Specifications
Measuring gas
| O2
| CO
| H2S
| Combustible
|
Measuring range
| 0-25%vol
| 0-500ppm
| 0-100ppm
| 0-100%LEL
|
Sensor type
| Electrochemical
| Electrochemical
| Electrochemical
| Catalytic
|
Sampling method
| Natural diffusion
|
Working temperature
| -20℃~50℃ for toxic gas
-40℃~70℃ for combustible gas
|
Working humidity
| ＜95%RH (no dews)
|
Accuracy
| ±5% FS
|
Response time
| T90＜30s
|
Alarm sound
| ≥80dB @ 1m
|
Power source
| DC3.7V 1800mAh Lithium battery
|
Charging time
| 4h~6h
|
Working time
| Combustible gas: ≥8h
Toxic gas: ≥300h(20℃)
|
Ingress protection
| IP66
|
Explosion-proof grade
| Exib Ⅱ CT4
|
Event log
| 10,000 events
|
Housing
| Rubber enclosure
|
Standard accessories
| Operation manual, calibration cap, charge, screwdriver
|
Optional function
| Data upload through USB cable
|
Dimension
| 108.4mm×61mm×36mm
|
Weight
| About 191g
|
>>
