Anti Flaming St Spring Cage 4mm Electric DIN Rail Terminal Block

Product Description

Poenix Anti Flaming ST Spring Cage Teminal Block
1. DESCRIPTION:

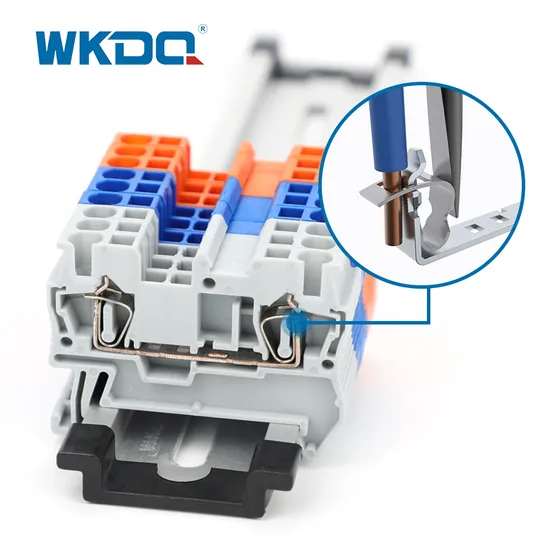

The compact spring-cage connection offers a reliable ,constant connection when subjected to strong vibrations. Connect conductors that are vibration resistant, gas-tight and have long-term stability with the spring-loaded conductor contacting.
Made from engineering flame retardants nylon PA66,brass conductor, stainless steel pressure spring. The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories. As well as saving space, the compact design and front connection enable user-friendly wiring in a small amount of space. The large wiring space enables the use of conductors with ferrules and plastic collars within the nominal cross section. With universal foot which can be installed on Din Rail NS 35. It can connect two conductors with ease, even large conductor cross sections are not a problem. Electric potential distribution can use plug-in bridges in the terminal center. All types of accessories: End cover, End Stopper, Marker strip, Plug-in bridge, Marker carrier,etc.
Technical Parameters

Model No.	JST 4
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	56.5/35.5/6.2
Connection method	Spring-cage connection
Material	Flame resistant Nylon PA66, Tin plated brass conductor
Rated Voltage/Current	800V/41A
Cross section, solid/soft Cable	0.5-6mm² / 0.5-4 mm²
Conductor Size	20-10 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	6.2g/pc, 50PCS/BOX,3000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001

FAQ
Q1 : Are you manufacturer ?
We are factory specializing in Terminal Blocks, Fans Filters Since 1999.
Q2: Can you make customized products or packing?
Of course, our R&D Depart. have rich experience in OEM, ODM service. Package can be customized as demanded.
Q3:What about your MOQ?
We keep large stocks for standard product with Fast Delivery, no MOQ required.
Q4: Do you have any test certification?
Products approved by CE, RoHs, etc. Our factory passed by SGS and CQC ISO9001 Qualification.
Q5: How about the after-sale service? What's the warranty terms?
If you have any problems after sales, we'll bring out solution within 24 hours. Quality warranty is 1 year, for problems happened over 1 year, we can also assist to solve.

---
