US$820.00-1,080.00
|
24 Pieces
(MOQ)
|
Basic Info.
Braking Mode
Front and Rear Disc Brakes
Cooling Method
Oil Cooling
Bore* Stroke
65.5 * 66.2mm
Rated Power
11.5 Kw 7500±500 R/Min
Max. Torque
17n.M 5500±500 R/Min
Quantity in Container
24/20gp, 72/40hq
Tire
110/70-17, 150/70-17
Transport Package
Carton with Iron Bracket
Specification
2080*790*1100mm
Product Description
About our company
Our company covers an area of 50000 square meters and has modern means for handing official business.
We have two specialized assembly lines with the world's advanced level, including assembly, testing, packing and inspection.
Our company produces 6 motorcycle series from 200CC to 400CC, We can provide over 100000 motorcycles every year and we have passed the ISO9001 international recognition of quality system.
All of our products have passed China Compulsory Certificate(CCC), as well as ISO9001, GCC
We have obtained an export produce quality licence and was praised as Wuxi excellent enterprises.
Technical specifications
250cc Technical specifications | Engine | Frame |
| Engine model | CBB250 | Dimension | 2040*800*1120mm |
| Cylinder | 1-Cylinders | Wheel Base | 1430mm |
| Valve | 4-stroke | Dry weight | 170 kg |
| Cooling Type | Oil-cooled | Max. load | 160 kg |
| Bore* Stroke | 65.5*66.2mm | Max. speed | 115 km/h |
| Displacement | 223.4 ml | Clutch type | Manual |
| Starter | Electrical | Brake (Fr./Rr.) | Double-disc / Single-disc |
| Ignition | C.D.I. | Transmission | 520 Chain |
| Rated power | 12Kw 8500 r/min | Wheel | 17inch Alloy Wheels |
| Max. Torque | 18N.m 6000 r/min | Tire | 110/70-17, 150/70-17 Tubeless |
| Package | CBU/SKD | CKD |
| Packing status | Carton with iron bracket | Plywood box |
| Packing size | 1950*570*890mm | 1420*760*560 mm / Body parts |
| Qty in container | 24/20GP,72/40HQ | |
| M.O.Q | 24units | |
400cc Technical specifications | Engine | Frame |
| Engine model | VSK264MP-C | Dimension | 2040*800*1120mm |
| Cylinder | 2-Cylinders | Wheel Base | 1430mm |
| Valve | 4-stroke | Dry weight | 170 kg |
| Cooling Type | Water-cooled | Max. load | 160 kg |
| Bore* Stroke | 63.5*62.2mm*2 | Max. speed | 150 km/h |
| Displacement | 367 ml | Clutch type | Manual |
| Starter | Electrical | Brake (Fr./Rr.) | Double-disc / Single-disc |
| Ignition | Transistor | Transmission | 520 Chain |
| Rated power | 20.6Kw 8300 r/min | Wheel | 17inch Alloy Wheels |
| Max. Torque | 28N.m 6000 r/min | Tire | 110/70-17, 150/70-17 Tubeless |
| Package | CBU/SKD | CKD |
| Packing status | Carton with iron bracket | Plywood box |
| Packing size | 1950*570*890mm | 1420*760*560 mm / Body parts |
| Qty in container | 24/20GP,72/40HQ | |
| M.O.Q | 24 units | |
| |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | |
| | | |
| | | |
| | | |
| | | |

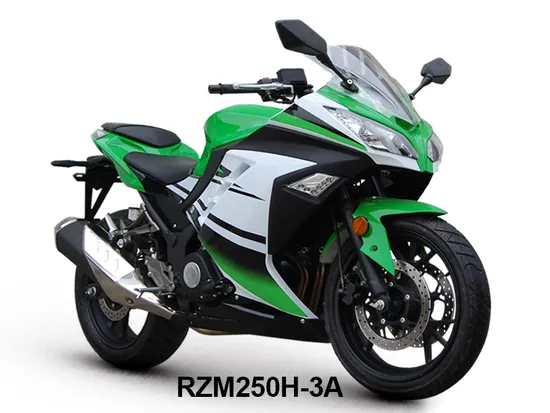

Picture from the whole
Pictures of details
Colors
1, In order to ensure the interests of importers, but also to ensure quality after-sales service. Our company does not sell the product directly to users.
2, Due to the special certification requirements of the destination country, this product cannot be sold in the following countries at present. USA and Canada (EPA certificate), India (ADR certificate), Australia (Arai certificate). Please do not contact us from the importers of the above countries, so as not to waste your precious time.
>>
