Product Details
Product Description
Product Description
Basic Info.
Model NO.
WP6D152E200 Weichai Engine
Speed
Speed
Cooling Cylinder
Water-Cooled
Intake Pressure Impulse
Naturally Aspirated
Piston Movement
Reciprocating
Fuel
Diesel
Number of Strokes
Four-Stroke
Cylinder Arrangement Form
V
Number of Cylinders
4-Cylinder
Type
Combustion Engine
Usage
Common Units, Standby Unit, Emergency Crew
Excitation Mode
AC Rotating Exciter
HS
850212
Color
Pantone
Cover Type
Silent/ Waterproof Enclosed/Trailer/Container
Fuel Consumption
17-24.6L/H
Emissionstandard
GB20891-2014II
Starter
D/C 24 V
Speed Regulation
Machinery/Electricnic
Output Type
AC Three Phase
Conditions of Use
Land Use
Landuse Type of Unit
Low Noise
Frequency
50/60 Hz
Controller
Smartgen, Deepsea, Comap, Datakom, Harsen, etc
Radiator
50 Degree Cambient Radiator
Transport Package
Anti-Collision Plastic Film
Specification
5CBM
Trademark
WEICHAI
Origin
Shandong, China
HS Code
850212
Production Capacity
20000 Sets/Year
Product Description
1. Introduction

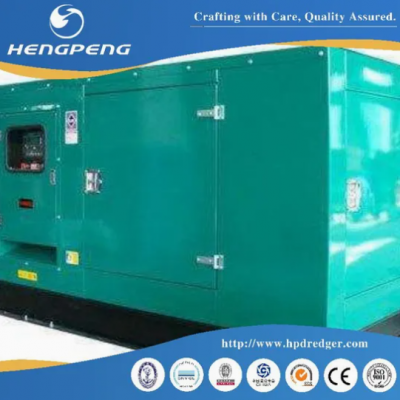

The WP6D152E200 Weichai Engine 150 KVA Diesel Generator combines advanced engine technology with a reliable alternator for efficient power generation. This genset is designed to deliver consistent performance in a variety of applications, including industrial and commercial settings. It features a Weichai engine and a Stanford-alternator copy, providing dependable power output and high operational efficiency.
2. Features
High Efficiency: Engine rated at 138 kW and standby power at 152 kW.
Advanced Design: Turbocharged engine with mechanical control and forced water cooling.
Reliable Alternator: Brushless design with self-excited excitation and IP22 protection.
Precision Voltage Regulation: ±1% voltage regulation for stable output.
Durable Construction: Class H insulation level and single bearing rotor for enhanced longevity.
3. Specification
ItemParameter
| Engine Model | WP6D152E200 |
| Rated Power | 138 kW |
| Standby Power | 152 kW |
| Cylinder Type | 6 cylinders, 4-stroke, L |
| Bore × Stroke | 105 × 130 mm |
| Aspiration | Turbo |
| Control Mode | Mechanical control |
| Rated Speed | 1500 rpm |
| Displacement | 6.75 L |
| Fuel Consumption | Max. 20,510 g/h |
| Cooling Method | Forced water cooling |
| Starter Method | D/V 24V |
| Alternator Model | SZN274F |
| Design | Brushless, Single bearing, Revolving field |
| Stator | 2/3 pitch |
| Rotor | Single bearing, Flexible disc |
| Exciter Type | Self Excited |
| Insulation Level | Class H |
| Protection Level | IP22 |
| Winding Way | 12 |
| Voltage Regulation | ±1% |
| Max. Current | 300 A |
4. Application Scenarios
This diesel generator is ideal for industrial plants, commercial buildings, and any applications requiring reliable and continuous power supply. It is well-suited for use in environments where high power output and dependable operation are critical.
5. Hull Decomposition
The generator set includes a robust enclosure designed to house the engine and alternator securely. The enclosure ensures protection from environmental factors and easy access for maintenance and operation.
6. After-Sales Service
Lifetime Technical Support: Continuous support from our technical team.
Maintenance Service: Regular inspections and maintenance to ensure optimal performance.
Accessory Replacement: High-quality replacements for original components as needed.
Technical Assistance: Expert answers to technical questions and issues.
Training: Customized training services for operating and maintaining the dredger.
7. Certifications
CCS: China Classification Society
BV: Bureau Veritas
ISO9001: International Quality Management Standard
ZC: (Additional Certification)
DNV: DNV GL
8. Why Choose HengPeng
High Quality: Manufactured using CCS marine steel and advanced technology.
Reliable Performance: Equipped with a new highly effective drive system and reliable electrical components.
Customization: Ability to tailor the dredger to specific needs and working conditions.
Fast Delivery: Standard designs delivered within 10-15 days.
Comprehensive Support: Lifetime technical support, maintenance, and training services.
>>
