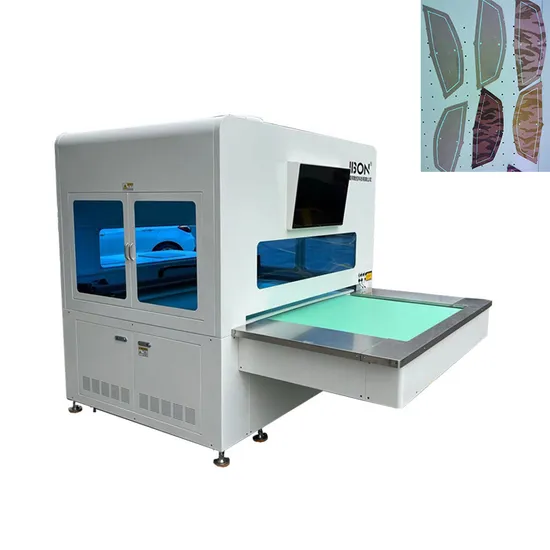

Automatic Cartridge Inkjet Shoe/Footwear/Garment/Cloth Line Printing Drawing Machine

Product Description

Automatic cartridge inkjet shoe/footwear/garment/cloth line printing drawing machine Product Description Shoe upper line marking machine is suitable for all kinds of shoes (PU, microfiber, leather, cloth, etc.) before sewing high-precision line drawing process;Automatic assembly line operation, replacing manual line drawing, screen printing and other traditional processes, high efficiency, environmental protection, energy saving;Mitsubishi servo motion module, fast speed, high precision, low failure rate;HP high-speed inkjet head, slim spray point, standard continuous ink supply system, saving consumables cost;High-precision industrial camera with drawing, visual computing system automatic recognition, accurate positioning, automatic line drawing;Integrated inkjet printing mode, faster and more efficient than line drawing by track;Receiving platform standard drying system to ensure material quality;

Detailed Photos

Product Parameters

Product name	smart shoe line marking machine
working area	1200mm*900mm
Ink type	flurescent ink
Format	PLT/DXF
Power	220-24v
Applicable	shoe upper, vamp, cloth
Control	computer

Features and advantages:
Camera visual recognition, intelligent positioning, one machine can replace 5-10 people Supports computer mapping and industrial camera visual positioning, easy to operate, easy to learn.The line drawing pass rate is ≥99%, and the line drawing accuracy reaches 0.02mm.
High-definition visual positioning, line drawing accuracy up to 0.02mm, optional automatic loading and unloading
It saves not only labor, but also 50% of ink and stencils.
Uniform high-speed jetting can save 50% of ink, saving the cost and time of making stencils.
The automatic line drawing machine is flexible and versatile, allowing line drawing on materials to be unrestricted
Not limited by materials, multiple styles, different cutting pieces can achieve simultaneous line drawing
Recognize the shape and direction of the material , accurately locate and draw the line automatically , and can recognize more than 20 different pieces at the same time for meeting the user's line drawing work.
Adopt customized servo motion module, fast speed, high precision and low failure rate. Controlled by software activation, auto-location, and material movement system of servo motor Separately .
Application:
The shoe upper cloth line drawing machine is widely used in the production and manufacturing of various types of shoes, including sports shoes, leather shoes, casual shoes, etc. It can provide efficient and precise marking solutions for shoe factories and improve product quality and production efficiency.
Drawing effection:
After Sales Service 1. 12 months warranty for the whole machine. Technology support all life time.
2. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, telephone, video online and so on, when you meet some problems of installation, using or adjusting.
3. You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments all sorts of tools and testing facility,we will also provide accomadation during training period.
4. We can provide door to door service if needed.
Packaging & Shipping
Exibitions:
Company Profile
IBON is a physical factory specializing in flexible material cutting ,As a professional manufacturer with many years of industry experience,the independent high-end brand "IBON" have won a good market reputation.
Our factory is dedicated to providing superior cutting solutions for a wide range of applications, including automotive, aerospace, electronics, fashion and more. We have a team of highly skilled specialists who are dedicated to delivering cutting edge technology and unparalleled customer service. The state-of-the-art cutting machines we manufacture ensure our clients can handle complex projects with ease.
The products have been widely used in the domestic flexible materials industry and exported to Europe, the United States, the Middle East, Southeast Asia and other countries and regions.
If you are looking for a reliable cutting solution provider for your business, IBON is the right choice. We are your partner in success and stand by our commitment to quality and reliability in all our services.
FAQ
1.Is there any technical help after we receive Automatic shoe upper marking line Machine?
Yes, we have perfect after-sale service team to supply technical support on our customers. Our technical can assist you to install machine and give you free training after you receive machine.
2. What value can this intelligent shoe line marking machine bring to me?
This system is suitable for production line, easy to move, easy to be integrated with other systems.Saving time and labour.
3. What's the mainly applications for the automatic shoe upper line drawing machine?
Genuine Leather, Synthetic leather, suede, mesh, mid-sole, cloth, canvas and other materials.
4.If there is some problems about shoe line drawing parts during warranty period, will your company repair or replace for me?
Yes, we will. Please send the main part back to our company,we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well ,we will send new one to you within warranty time for free.

---
