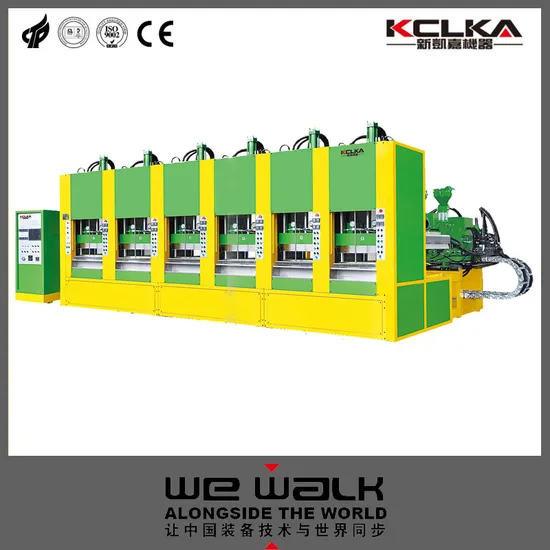

New Brand Shoe Injection Molding Machine EVA Slipper Shoe Sole Making Machine

Product Description

Item	unit	Parameter
Work Stations	station	8
Clamping Force	ton	180
Mold Height	mm	100-230
Mould-Opening Stroke	mm	350
Mould Plate Size	mm	(290*550)*2
Injection System
Injector	set	2
Diameter of Screw	mm	Ф65
Injection Cap(MAX)	cm3	920
Injection Pressure	kg/cm2	0-130
Injection Speed	cm/sec	0-10
Rotating Speed of Screw	r.p.m	0-190
Temperature Control	station	4
Electricity Consumption
Heater Barrel	kw	9.8*2
Heating Plate	kw	102.4
Hydraulic System	kw	51.9
Vacuum Pump	hp	1.5
Cooling Fan of Barrel	hp	1
Total Electricity	kw	155.8
Oil Tank Size	L	1000
Machine Weight	kg	33000

Data are not binding and may be changed without prior notice.
1.Its product range includes EVA slippers, sandals, clogs, mid-sole, sport protectors and various kinds of shoes and shoe accessories all depends on the EVA shoe mould and can also make EVA wheel for toys and so on.
2.The clamping force can be increased from 150 to 210 tons, according to your requirement.
3.The foam EVA injection molding machine is fully hydraulic and automatic operation except taking out product.
4.It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production.

Character:
1.Low operation height,Operation height in accord with human engineering.
2.Extra height opening stroke
Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and
3.available for 2plates mould,Mould thickness adjusting mechanism
Mould adjusting scope: 100-200MM
4.Rapid mould opening ,Act by toggle mechanism which opens the mould rapidly
5.Speedy injector movement .
Driven by linear-track, allowing speedy moving and precise positioning,Energy saving design
6.No need water circulation for mould station
7.Space saving design,Put oil tank together with injection base, which makes the structure compact and saves more space.
FAQ.

Delivery date:
Within 20 days After receiving the 30% earnest money

Payment term:
Advance payment at order 30%, 70% before shipment

Delivery State:
Machines were taken apart and packed in suitable package that fits container shipping

For the machine experiment and installation, our technician will be sent to your
factory. And you are requested to afford the cost of their trip and payment .
Our technician will manage all the machine things for you and at the same time train your workers on
how to use and maintain the machine.

Guarantee Time:
One-year warranty and lifelong service. During guarantee period, the cost of any spare parts or new accessory should be borne by the seller, and the freight for delivery of spare parts will be on the buyer's account.

---
