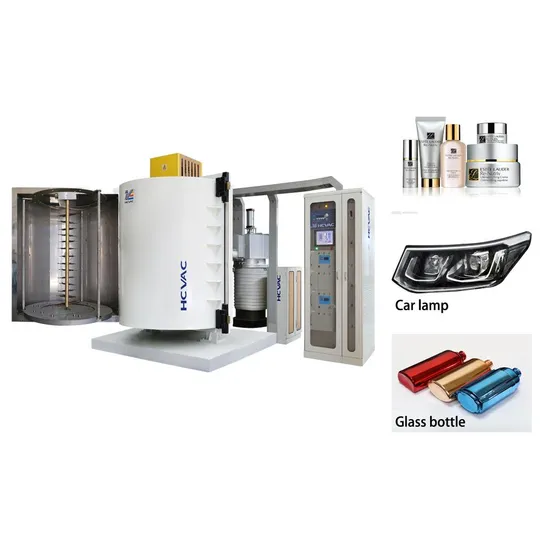

Hcvac Plastic Aluminium Evaporation PVD Vacuum Metallizing Coating Machine

Product Description

HCVAC Plastic aluminium evaporation pvd vacuum metallizing coating machine
Plastic vacuum metalizing machine adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;
Coating color: gold, silver, red, blue, green, purple, multi color, and so on.
The company can design all based on user requirements specification models of Vacuum Coaters. Vacuum units and electric control system can be designed according to user requirements configuration.
Parameters:

HCRE SERIOUS PARAMETERS
Mode	HCRE-1214	HCRE-1416	HCRE-1618	HCRE-1820
Dimension	1200*1400mm	1400*1800mm	1600*1800mm	1800*2000mm
Film Type	Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc.
Power source	Thermal evaporation power, ion bombard power, RF power
Vacuum chamber structure	Vertical double/single door, horizontal single door, pump system postposition
Ultimate vacuum	8.0*10-4Pa
Vacuum system	Diffusion pump +Roots pump +Mechanical pump +Holding pump
Pump time	Pump from atmosphere to 5.0*10-2,6 minutes
Workpiece motion mode	Public rotation/Frequency control
Control mode	Manual/Automatic all-in-one mode, Touching screen+PLC
Remark	We can design the dimension of the vacuum chamber according to customers demand.

Application:
Machine Category:
Company Profile
The coating experts of your own company:Full set solution for the coating production.
Factory workshop:

Certifications

Packaging & Shipping
Our Advantages
Why Choose HCVAC system? Over 3000 plants installed worldwide Quick cycle times High production capability with low energy consumption More up time due to ease of loading/unloading and low maintenance High productivity with only a single operator Steel process chambers, built to last Eco-friendly Space saving design PVD option available on all plants 1 year component warranty and 25 years minimum guaranteed working life Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
