Rubber Equipment Paper Machine Air Spring for Felt Section Making Mills Kraft

Product Description

Product Description

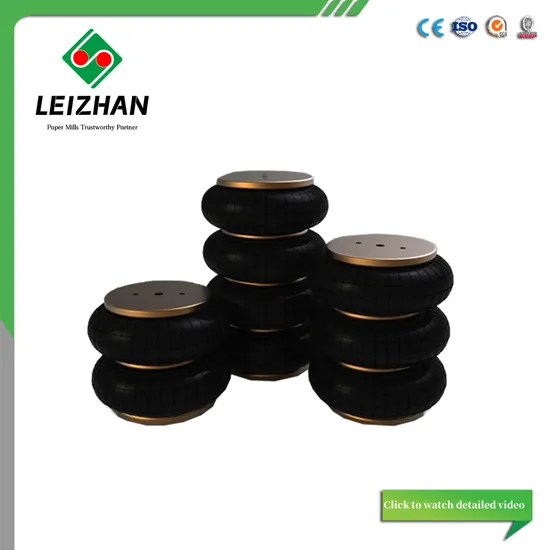

Paper Machine Air Bellow

The air spring is located in different areas of the paper production process. Air springs consist of a flexible elastomer rubber body with nylon fabric reinforcement, and rustproof plates with an air inlet and mounting blind nuts. The rubber bellows can be used both as vibration isolators and rubber actuators. The air springs absorb up to 99% of the unwanted vibrations avoiding further damage to the machines and metallic structures. At the same time, they reduce noise levels.
Detailed Photos

Product Parameters
It is mainly used in airbag-type doctor blade holders, conveying pressurized air, convenient for controlling the line pressure of the scraper blade and roller surface, and buffering the vibration of the scraper.

LZ80-01		LZ160-01		LZ400-01
Maximum load	88kg	Maximum load	1251kg	Maximum load	8958kg
Maximum Diameter	80mm	Maximum Diameter	175mm	Maximum Diameter	430mm
Natural Diameter	80mm	Natural Diameter	160mm	Natural Diameter	400mm
Minimum compression height	40mm	Minimum compression height	74mm	Minimum compression height	82mm
Maximum elongation height	70mm	Maximum elongation height	190mm	Maximum elongation height	247mm
Component weight	0.1kg	Component weight	1kg	Component weight	4.9kg
