Portable Finger Vien Scanner Device Digital Infrared Vein Viewer

Product Description

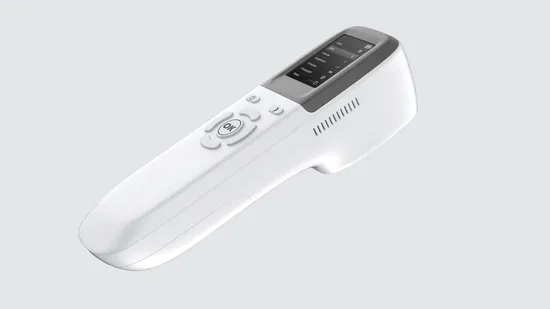

JM-S9 Vein Finder (Adult, Child, Infant)
Product Introduction
JM-S9 is a portable vein finding device. It can project the blood vessels image on skin surface accurately and timely. The ergonomic design makes it very comfortable to hold. And the optional desktop stand and mobile trolley are available for multiple application situations.

Help doctors and nurses easily find veins of various patients, such as obesity, hairy or dark skin people, etc. It highly increases the success rate of puncture thus reduces the cost and pain.

This device also can be used to examine patients with varicose veins, and avoid closed or bifurcated veins.


Functions:
This machine has various user-defined functions, which can adapt to different ages, body shapes, skin colors, weights and various operating environments. And it can be used for dialysis elbow puncture, beauty and infant puncture.

-12 Colors Available: Suitable for different skin colors or environments.
-3 Sizes Available: Suitable for adults, children and newborns.
-5 Levels of Brightness: Adjust the projection image to the most comfortable brightness.
-Inversion: Reduce arm hair interference and make blood vessels clearer.
-Enhancement Mode: Enhance the clarity of blood vessel detection.
-Sleep Mode: Enter into low power mode when the user needs short intervals and can be waked up quickly. And it can customize the sleep time.
-Camera: It can save vein images to record it.
-Image storage capacity:6000 sets
-Connect the computer to view the storage images.
-Automatic shutdown without operation for 35 minutes

Technical Parameter
Infrared light detection without harm to human body.
Infrared Wave: 760-940nm
Infrared detection depth: 6-10mm
Best detection distance: 15-25cm
Accuracy of blood vessel position: ±0.5mm
Accuracy of blood vessel resolution: ±0.5mm
Low working noise: ≤40Bp
The battery capacity can be displayed.
Low Battery capacity prompt.
Panasonic 4800mA rechargeable lithium battery, 3.5 hours duration.
DLP projection technology.
Power supply of charging: 5V 5A, 100V-240V 50Hz-60Hz
Weight: 350g
Size: 24*6*6.5cm

Model	JM-S6	JM-S9
Suitable range	Adult, Child	Adult, Child, Infant
Color	7 Colors	12 Colors
Sizes	3	3
Inversion	Yes	Yes
Brightness	5 Levels	6 Levels
Enhancement	Yes	Yes
Sleep Mode	Yes (10 mins)	Yes (adjustment:10mins, 15mins, 20mins, 25mins, 30mins)
Camera (Save picture)	No	Yes
Battery	3400mA	5000mA
Connect computer	No	Yes
LED Display	No	2.4 Inch
Language	English	10 Languages
Depth Indicator	No	Yes

Standard Configuration
Main machine
Charging cable
Charging adapter
User's manual
Calibration card
Warranty card
Carry box

Optional Configuration
Special Table Stand & Special Mobile Stand for your choose

---
