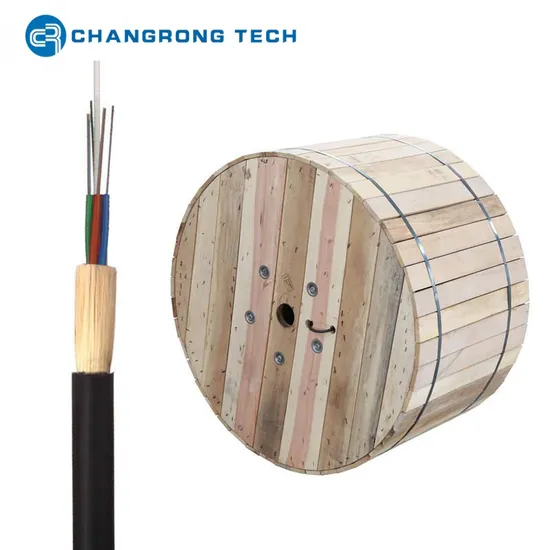

Outdoor Single/Double Jacket Aerial 144 Core G652D Span 200m ADSS Fiber Optic Cable

Product Description

ADSS Outdooor Aerial Single/Double Jacket Fiber Optic CableFibers: up to 288 coreFiber type: Single mode fiber G652.DCentral Strength Member: FRP
Aditional Strength Member: Kevlar Aramid YarnOuter Jacket: MDPE/ HDPEApplication: Self-supporting overhead laying, Electric no power off installation
Moisture Resistance: Water-blocking Yarn & Water-blocking TapeSpan customized: 80/100/120/150/200/300/400m etc.
Reel Length: 2km,3km,4km, etc.
Product Parameters

Counts	2-30	32-36	38-60	62-72	74-96	98-120	122-144	146-216	218-288
Max.fiber counts per tube	6	6	12	12	12	12	12	12	12
Units(Tubes or Fillers)	6	6	6	6	8	10	12	18	24
Cable Diameter(mm)	9.7	9.7	9.7	9.7	11.2	12.3	13.5	13.7	16.3
Weight(Kg/km)	74	75	75	75	100	120	143	142	195
Fiber Type	G652D G655 G657 50/125 62.5/125
Tensile Strength(N)	Long/Short Term:1900/4800
Crush Resistance(N/100mm)	Long/Short Term:300/1000
Bending Radius(mm)	Static/Dynamic:10D/20D
Temperature(ºC)	Storage /Operation:-40ºC~70ºC

Item	Value
Span	200M
Fiber Counts	144
PBT Tubes	12
Fiber Count/ Tube	12
Fiber Identification	Blue Orange Green Brown Grey Nature Red Black Yellow Violet Pink Aqua
OD of Tube	2.4±0.1 mm
Thickness of Tube	0.35±0.05 mm
Color of Tube	Blue Orange Green Brown Grey Nature Red Black Yellow Purple Pink Aqua
FRP	2.8/7.0 mm
Water Blocking Method	water blocking yarn & Water blocking tape
Additional Strength Member	Aramid Yarn 1500 dtex * 8 Strands
Diameter of Core	11.8 mm
Ripcord	Polyester * 1
Thickness of Out Sheath	Nominal 1.6 mm HDPE
OD of Cable	15.4±0.3 mm
Net Weight	190.0 kg/km

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core. Water Blocking yarn and water blocking tape used in the cable core to prevent water penetration. Then Aramid Yarn to reinforce . Finally, PE or AT outer jacket is extruded. • It can be installed without power off.
• Easy to install with light weight and small diameter
• Customized span length (up to 1000 meters) suitable for different requirements
• Excellent mechanical and environmental performance
• Good water resistance performance
• Gel-filled loose tube protects the fiber wellMore Cores Option in Single Jacket:More Cores Option in Double Jacket:Our Advantages
1. Totally 18 Optical Cable Production Lines, able to manufacture bulk orders with prompt delivery.
2. Reliable Technical Support, meet the needs of different structure design and technical requirements.
3. Totally 18 Optical Fiber Production Lines, with annual output 15 millions core kilometers, able to manufacture A-grade Single Mode Fibers with high speed.
4. Own laboratory with advanced testing equipment introduced from France, Japan and USA, strictly controls products' quality under ISO9001 management system, industrial and international standards IEC60794-1.
5. Supply OEM/ ODM service.
Certifications
ISO9001, ISO14001, ISO45001 Certified FactoryOwn laboratory has passed the CNAS Certification
Workshop View
Fiber Workshop Show:
Cable Workshop Show: Packaging & Shipping
Drum Packing:
Shipping:
FAQ

---
