Moving Column Fixed Beam Machining Center PLD-40120

Product Description

Product Description

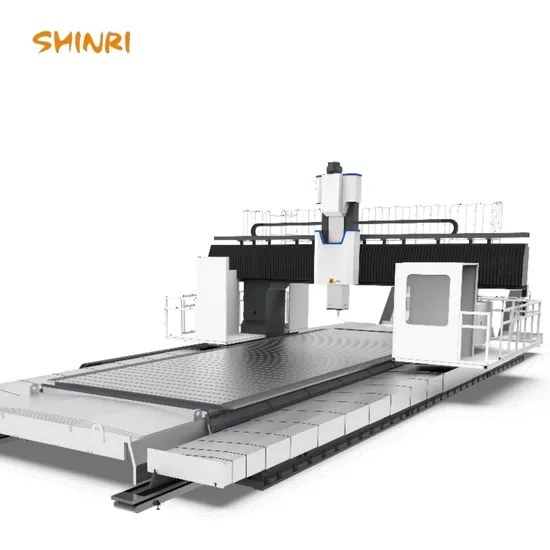

The machine tool has a gantry frame and a fixed workbench structure. It is mainly composed of a workbench, left and right bed frames, columns, beams, saddles, rams, hydraulic systems, lubrication systems, cooling and filtering systems, chip removal devices, rotary operating panels, and electronic control systems.
This product has a wide range of applications and strong processing capabilities. It is mainly suitable for aerospace, shipbuilding, power generation, heavy machinery, locomotives, machine tools, textile machinery, printing machinery, mold manufacturing and other industries. The machine tool has the functions of drilling, boring, milling, expanding, reaming, rigid tapping, linear interpolation, circular interpolation, helical interpolation, three-coordinate linkage, etc.
Product Parameters

Specification	Unit	PLD-40120
Table size	mm	4000×12000
X/Y/Z travle	mm	12500/5600/1600
Max. loading of table	T/m2	15
Cross gantry width(with cover)	mm	5100
RAM size	mm	450×450
Spindle speed	r/min	3000
Spindle motor power	kW	37/55.5
Rapid travel speed(X/Y/Z)	r/min	8/12/10
Overall dimension	m/min	22000×9000×7000
Weight	T	115

Related products

Company Profile
SHINRI CNC Machinery Group is consisted of Jiangsu Shinri Heavy lndustry Science &Technology Co., Ltd, Jiangsu Shinri Gear Systems Co., Ltd Ningxia Shinri Changcheng Machinery Co., Ltd, Ningxia Shinri Changcheng Casting Company Co., Ltd. Lt is subordinate to the New United Group. Shinri products covered three time-honored brands, respectively Shinri, Changcheng and Duoleng and 12 different products series. So far Shinri becomes one of the biggest machine tool manufacturers covering nearly alltypes of machines in China.
By embracing new, high and outstanding technology, Shinri opens his hands to escalate his customers from their traditional applications and gives optimized solutions. The two R&D centers and manufactory bases, in Changzhou and Yinchuan, have totalarea of premises of 700 thousands m and 300 thousands m modernized plants. We introduced a good number of high precision mother machines from world first class makers and the yearly machine production reaches to 3500 pieces or more. In Yinchuan city, by invested 600 mllion RMB, the first phase of construction of foundry plant has established with yearly capacity 40 thousand tons With strong financial, intelligent and technical supports, the company is gigantic in R&D and manufactory.
Its products list covers VMC, HMC, CNC lathe, gantry boring milling/machining center/5 faces/5-axis synchronous, floor type boring milling/machining center, end facing & centering machine, drilling machine, FMC, FMS, Railway gear box, Wind power gear box and industrial gear box etc. The products are broadly applicable to aerospace, automobile, shipbuilding, electronic appliance, new energies sources, railway traffic, engineering mechanic, petro chemistry, die tooling and vocational education...etc.
As a national enterprise endowed with the mission of rejuvenating Chinese traditional industry, Shinri will follow the concept ofputing people first, making innovations & building a future of excellence. Work under the guiding principle of providing the highquality products & best service for customers in order to become the most competifive CNC machine tool manufacturer & bestsolution provider at home & abroad.

---
