Product Details
Product Description
Product Description

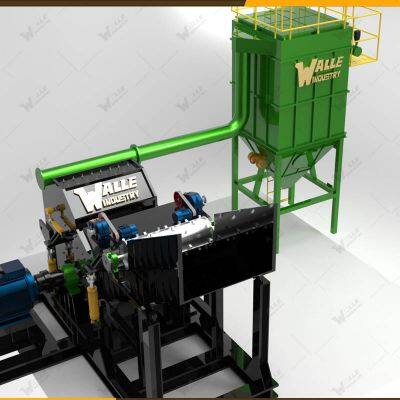

metal scrap crusher is for the light material. bulky material or the steel wire scrap to process them into smaller density material through the hammer squezing, rubbing,crashing of hammer and the material, to down size of material, meanwhile to get out the impurities .cut off the cost of transportation, increase the melting ratio. there is fit with jet pulse filter to proect environment.
1 the force feeding device, two stage pressing the bulky material to the crushing chamber . improve the processing efficiency.
2.Robust frame and liar to keep continue uptime.
3. Eject design to avoid heavy material damage the core part.
4. Hydraulic cylinder to open caps , which is convenient to speed up offtime.
5. The New hammer design with the cover to expand working hours.
6. The crushing chamber takes the thickness and durable material to reliable and keep Operation hours. 7. expedition of sorting device, Zig zag separator , and drum magnetic separator equipped.
Technical parameter
| S.N | Model | Fedding open width | power | capacity |
| 1 | PGS-400 | 1200 mm | 400kW/535HP | 8-12T/H |
| PGS-500 | 1200 mm | 500kw/670HP | 13-15T/H |
| 2 | PGS-600 | 1600 mm | 600KW/800HP | 15-18T/H |
| PGS-750 | 2200 mm | 750KW/1000HP | 20-25T/H |
| 3 | PGS-900 | 2200 mm | 900KW/1200HP | 25-30T/H |
| PGS-1200 | 2200 mm | 1200KW/1600HP | 30-40T/H |
| 4 | PGS-1500 | 2500 mm | 1500KW/2000HP | 35-50T/H |
| PGS-2250 | 2500 mm | 2250KW/3000HP | 50-70T/H |
Company Profile
Henan Walle Industry Co., Ltd
Walle industry is an industrial equipment manufacturer & trader from China, with over 16 years of rich experience and unique knowledge, We help our customers around the world solve a variety of problems from crushing and screening all the way through different materials, we have remained dedicated to our values and to providing material processing solutions that improve the lives of people around the world.
