Manufacturer Servo Plastic Product Making Machine

Product Description

manufacturer servo plastic product making machine

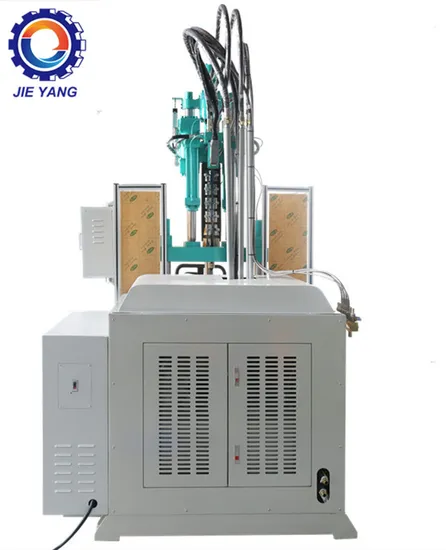

Detailed Images:
Function:
1.Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.
2.With double slide table or rotary design, putin, take out products and molding
finish at the same time, which is more safe and efficient for production , then
reduce the cost of production.
3.High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatlyextend machine
& mold life.
4.Nitride and NIP/ Nitroflon coated screws and barrels are long-lasting, robust and
provide superior acid/alkaline resistance.
5.Standard : Varuable Pump for Energy Saving 30%-50%
Application:
Youtube videos:

Rotary table injection molding machine for plastic nail	https://youtu.be/S4pSiGR78ek
Rotary table injection molding machine for led head	https://youtu.be/TWKDxjWxZ-Q
Rotary table injection molding machine for led bulb	https://youtu.be/VsHdMFFCHDg
Double color rotary table injection molding machine	https://youtu.be/p_vZLf94b54

Parameter of Machine:

JY-550STR /850STR Technique specification
Model			Units	JY-550STR			JY-850STR
Injection System	Screw Diameter		mm	32	34	42	42	44	48
	Injection Pressure		Kg/cm2	1870	1418	960	1027	895	790
	Theoretical Shot volume		cm3	113	134	194	194	223	253
	Max. Shot Weight(P.S)		9	102	123	176	176	201	227
	Injection Rate		cm3/sec	42	51	84	99	113	129
	Screw speed Max		rpm	0-200			0-200
	Temperature Control		ZONE	3			4
Clamping System	Clamping Force		T	55			85
	Disk Station		pc	2~3			2~3
	Disk Diameter		mm	980			1150
	Min Mold Height		mm	250/200			430/230
	Opening Stroke		mm	200			255
	Max. Open Daylight		mm	450/400			685/485
	Ejector Force		T	1.5			2.2
	Ejector stroke		mm	135			130
Power& Heading System	Max. Hydraulic Pressure		Kg/cm2	140			140
	Pump Output		L/min	40			47
	Pump Motor Power		Kw/HP	7.5/10			11/15
	Barrel Heating Power		Kw	4.5			5
	Total Wattage		Kw	12			16
Others	Machine Dimensions (L*W*H)		m	1.65*1.9*2.7			2.5*1.6*2.5
	Shipping Size (L*W*H)		m	1.8*2.05*2.8			2.7*1.8*2.7
	Machine Weight		T	3.3			5.5
	Shipping Weight		T	3.4			5

Our Company:
Packaging :
1.We will arrabge to manufacture the machine the second day after your confirmation.
2.Before shipment,we will check and test the machine carefully.
3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.
FAQ:
Q1: Are you a trading company or a manufactory?
A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.

Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.

Welcome to your further enquiry !

---
