Nkyk Factory Direct Sale 16 Way Gas Alarm Controller

Product Description

Specification

Name	Description
Display:	7-inch TFT LCD with touch function
Power source:	AC176V~AC220V; 50Hz±1%;
Power consumption	≤10W
Output Voltage:	DC24V±15%
Input signal:	1-way RS485
Output signal:	1 channel RS485
Relay output:	6 groups of passive relays
Relay contact capacity:	5A,30VDC or 5A,220VAC
Alarm mode:	sound, light alarm
Installation:	safe on-site wall mounting
Applicable detectors:	ES10 series gas detectors
Number of connected detectors:	≤32
RS485 communication distance: :	≤800m
Operating Temperature:	-20ºC~+50ºC
Operating humidity:	10~95%RH (no condensation)
Working pressure:	86~106Kpa
Storage conditions:	0ºC~+40ºC,15~95%RH (no condensation)
Size:	475mm*280mm*80mm(length*width*thickness)
Weight:	about 3.6Kg
Explosion-proof symbol:	non-explosion-proof
Protection grade:	IP54
Executive standard:	GB16808-2008

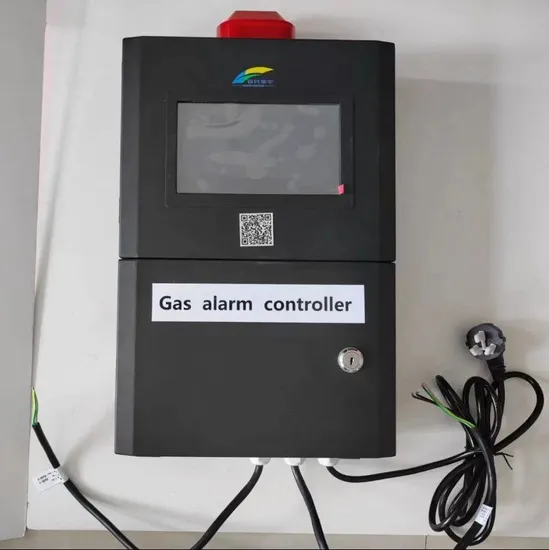

Gas alarm controller adopts 7-inch large screen LCD display design, full touch operation, the whole machine is beautiful and generous; embedded 32-bit ARM architecture processor, with real-time operating system and a wealth of embedded software, to complete the detector signal sampling, real-time data computation, display and control, high-capacity storage, system failure detection, alarm prompts, peripheral drive and other functions.
Gas alarm controller consists of main control board, parameter control board, TFT touch screen, sound and light alarm, switching power supply, etc.; the product is also built-in 6 sets of output relays for driving and controlling fans, solenoid valves and other equipment to adapt to different site conditions; its design follows the national standards, has a fast response speed, strong anti-interference ability, high reliability, easy to maintain and other advantages. *We support sample orders to check product quality *We also have wholesale prices, buy more, save more
*Each gas detector could be customized monitoring gas (over 200 types) by changing sensors
*Each gas detector could be customized the enclosures colors
*Just send inquiry to know more
*Just click it to suit all your needs Main functional features:
1, with 2-way RS485 digital communication; all the way to connect with multiple ES10 series probes, all the way to connect with the PC;
2, the system adopts 32-bit CPU architecture design to ensure stable and reliable system operation;
3,7 inch large screen TFT LCD display, full touch operation;
4, with sound and light alarm, alarm prompts at a glance;
5, with 6-way passive relay contact output;
6,Maximum support for 32G large-capacity SD card;
7, simple installation, easy to use; Applications Ningxia Nuoke Yinfeng Intelligent Technology Co., Ltd. Specializing in the development, production, sales and technical services of gas detection instruments Gas detection: Oxygen, various flammable and explosive gases, various toxic and harmful gases, volatile organic compounds (VOC), etc. Applications:Environmental protection, petroleum, chemical, shipbuilding, electric power, papermaking, metallurgy, pharmaceutical, water treatment, food processing, coal, building and other fields of gas detection
FAQ FAQ
1.Q:Can I have a sample order to test quality?
A: Yes, we re commend and welcome sample order to test and check before order.
2. Q: Do you offer guarantee for the products?
A: Yes, we offer 1 or 2 years guarantee for the products.
3. Q: If I order big quantity, Can I have a cheaper price?
A: We will reduce the price according to the specific quantity and your requirements for the product.
4.Q: How does your I factory do regarding the quality control?
A: Quality is priority, Our factory has passed ISO 9001 with annual audit.Established a procedure to check products at all stages of the manufacturing process-raw materials, in process materials.validated or tested materials, finished goods.etc.

---
