US$700.00-2,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Certification
CE, RoHS, ISO 9001
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description

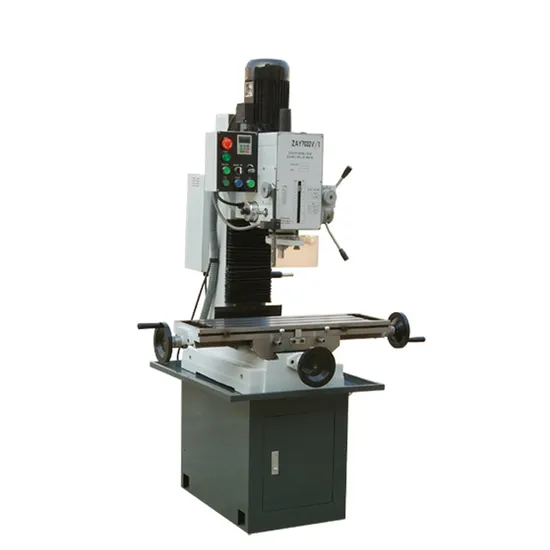

DRILLING MILLING MACHINE FEATURES:
Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
SPECIFICATIONS:
| ITEM | ZAY7032V/1 | ZAY7040V/1 | ZAY7045V/1 |
| Max.drilling capacity | 32mm | 40mm | 45mm |
| Max Face mill capacity | 63mm | 80mm | 80mm |
| Max End mill capacity | 20mm | 32mm | 32mm |
| Distance from spindle nose to table | 450mm | 450mm | 450mm |
| Min.distance from spindle axis to column | 260mm | 260mm | 260mm |
| Spindle travel | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Range of spindle speed(2 steps) | 100-530,530-2800r.p.m, | 100-530,530-2800r.p.m, | 100-530,530-2800r.p.m, |
| Auto-feeding step of spindle | 6 | 6 | 6 |
| Automatic feeding amount of spindle | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
| Swivel angle of headstock (perpendicular) | ±90° | ±90° | ±90° |
| Table size | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 175mm | 175mm | 175mm |
| Left and right travel of table | 500mm | 500mm | 500mm |
| Motor power(AC) | 1.1KW | 1.1KW | 1.5KW |
| Voltage/Frequency | 110V or 220V | 110V or 220V | 110V or 220V |
| Net weight/Gross weight | 320kg/370kg | 323kg/373kg | 325kg/375kg |
| Packing size | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
| Standard accessories : | Optional accessories : |
Drill chuck
Reduction sleeve
Draw bar
Some tools | Stand base
Auto power feed
Machine Vice
Collets chuck
Work lamp
Coolant system |
>>
