Product Details
Product Description
Product Description

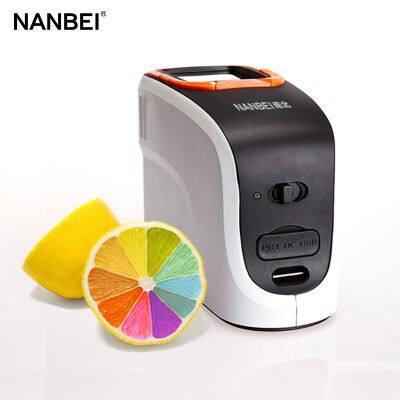

Lab Portable Colorimeter Spectrophotometer
CS-600C/CS-600CG spectrophotometer is a small lightweight portable 45/0 geometry color measuring instrument,
CS-600CG can also measure 60° gloss. 45/0 geometry is the most consistent with the visual perceptual color value,
which can eliminate the specular light on the surface of the texture, and the built-in gloss sensor can accurately
measure the gloss of the surface. It is suitable for the color and gloss measurement of automotive interior parts,
textiles, coil coatings, plastic products, road traffic representations, packaging and raw materials.
Instrument Introduction
1).Instrument adopts 45/0 geometry (45 ring-shaped illumination, 0 degree viewing)
The innovative ring-shaped illumination system eliminates the direction dependence, regardless of changing the sample position, the tilt sample or the rotating instrument can achieve the high accuracy and the repeatability, will reduce the influence which the grain brings to the lowest. The measurement on the surface of abrasive, textured and structured materials has brought great advantages.
2).Compatible with 60 Degree Gloss Measurement (CS600CG)
The instrument is with a high precise gloss measuring sensor that enables simultaneous measurement of gloss and color.
3). Comply with International Measurement Standards
The instrument complies with all the color measurement standards of CIE, ISO, ASTM, DIN and achieves the international level.
4).Color QC Software
Our spectrophotometer comes with free PC color QC software, which is applicable in various industries for management of color value. It is used for store test result, generate test report and print test report after connect with printer.
5). Every Instrument is with Verification Certification
Each instrument will be sent to the authority of the verification department to carry out metrological verification, measuring data traceability to the National Institute of Metrology, to ensure the authority of instrument test data.
6).Longest Device Guarantee Time
a. One Year Guarantee Time.
b. If testing data is not correct, we can do refund.
c. We will provide testing report for every device to assure the authority of the data and it will save the calibration cost for 1 year.
Product parameters
Brand name
| NANBEI
|
Model Number
| CS600C
| CS600CG
|
Function
| Color
| Color, 60° Luster
|
Geometry
| 45/0(45 ring-shaped illumination,0 observe degree)
|
Aperture
| 11mm
|
Wavelength
| 400-700nm
|
Wavelength interval
| 10nm
|
Sensor
| High sensitivity silicon photodiode
|
Illumination
| LED
|
Repeatability
| light splitting reflectivity:standard deviation within 0.08%
|
| color values;ΔE*ab | Inter-instrument agreement
| ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
|
Language
| English, Chinese
|
Observer
| 2°/ 10°
|
Light Source
| A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35
|
Color space
| CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance
Hunterlab,Munsell MI,CMYK,RGB,HSB
|
Index
| WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz)
Metamerism index Milm, Stick color fastness, Color fastness
ISO luminance, 8 gloss, A density, T density, M density, E density
|
Color Difference
| ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555 shade sort
|
Color Space
| CIE-15-2004;ASTM-D523;ASTM-D2244;ASTM D2457
|
Test Angle
| 60°
|
Test Area
| 5x10 mm
|
Test Range
| 0 - 1000 GU
|
Repeatability
| 0.2GU(0-100GU)
0.2%(100-1000GU)
|
Reproducibility
| 1.0 GU(0-100GU)
1.0%(100-1000GU)
|
Illumination Life Time
| 10 years 3 million test
|
Language
| English, Chinese
|
Data storage
| 20000 test results
|
Interface
| USB
|
Screen
| 2.8 inch color screen
|
Battery capacity
| rechargeable, 10000 continuous tests, 7.4V/6000mAh
|
Work temperature range
| 0~45ºC, relative humidity 80% or below( at 35°C ),no condensation
|
Size
| 181*73*112mm(L*W*H)
|
Weight
| about 800g(does not include battery's weight)
|
Standard accessories
| AC adapter, lithium battery, manual, color management software, driver software, manual electronic version, color Management tutorial, data cable, black and white correction tube, portable bag
|
| Gloss Calibration Tile
|
Optional accessories
| Measurement Area Locator
|
