Robust Mixing Machine for Optimal Chemical Production Efficiency

Product Description

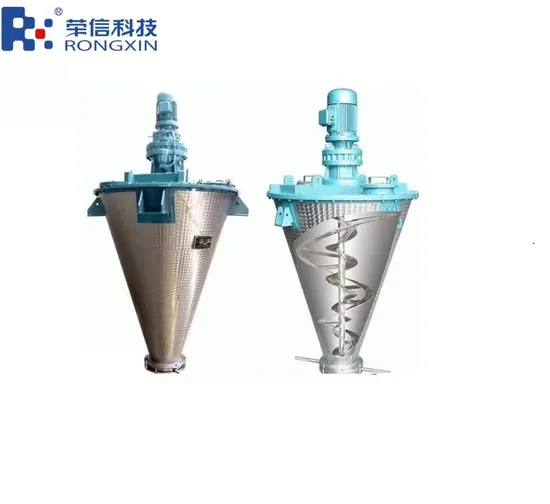

Unveiling The Double Screw Conical Mixer, an engineering marvel equipped with dual asymmetrical spirals set on an internal cantilever. This dynamic device performs a sophisticated dual rotation system-engaging in self-rotation around its own axis while simultaneously executing a revolutionary orbit around the vessel's central axis. This ingenious design manifests four powerful directional forces. The asymmetrical spirals proficiently elevate material upwards, as the cantilever's deliberate revolution circulates it in a graceful arc. The harmonized rotation and revolution elegantly pull the material inward, dispersing it outwardly along a circular trajectory. Material streams, ascended with precision, merge centrally and descend effortlessly, flawlessly occupying the void at the bottom. This orchestrates an exceptional and thorough circulating flow, ensuring superior mixing efficiency.
Outstanding Product Features
1. Innovative Cantilever Shaft Structure, where the bearings remain pristinely isolated from the material, ensuring untainted purity and averting any potential contamination.
2. The meticulous design of minimal gaps between agitator blades and the container wall is crafted to actively prevent material adhesion, ensuring seamless operation.
3. A standardized, robust agitator drive box guarantees unwavering equipment performance, significantly slashing maintenance expenses.
4. Effortless Cleaning : Expertly engineered for swift and comprehensive cleaning between batches, minimizing downtime and amplifying operational efficiency;
5. Enduring Construction : Crafted with resilient materials that promise long-term reliability, ensuring your investment withstands the test of time;
6. Versatile Applications : Demonstrating remarkable adaptability across diverse industries such as pharmaceuticals, food processing, chemicals, and cosmetics;
7. Conforms to stringent standards for complete and residue-free discharge, ensuring product integrity and purity;
8. Gentle mixing method that meticulously preserves delicate materials such as crystalline substances, maintaining their pristine quality and integrity;
9. Energy-efficient mixing method is highly suitable for facilitating material chemical reactions, boosting efficacy and productivity;
10. The innovative arched top cover design eradicates sanitary dead corners, enhancing cleaning simplicity and boosting efficiency;
11. Fitted with a spherical discharge valve for exceptionally thorough and stable material expulsion, ensuring seamless operation.
Unveiling Technical Parameters

Device Model	DSH-0.3	DSH-0.5	DSH-1	DSH-2	DSH-3	DSH-4	DSH-6	DSH-10	DSH-15	DSH-20	DSH-30
Effective Volume(m³)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	6	9	12	18
Maximum Batch Capacity(Kg)	200	300	650	1200	1800	2500	3600	600	9000	1200	1800
Revolution/Rotation(r/min)	3.5/12	3.5/12	3/78	3/78	3/78	1.8/65	1.6/65	1/65	1/65	1/44	1/44
Drive Power(kW)	3	3	4	5.5	7.5	11	15	18.5	22	37	45
Equipment Weight(Kg)	500	600	1200	1500	2300	2520	3700	3980	4500	5500	6800
D	φ950	φ1150	φ1580	φ1950	φ2170	φ2280	φ2560	φ3000	φ3450	φ3770	φ4100
H	2060	2350	2840	3500	3760	4360	4800	5900	6680	6700	7500

Captivating Product DisplayIngenious Product Structure Diverse Application Spectrum
The Double Cone Mixer is expertly crafted for use in industries such aspowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical, medical, and food industries,
delivering unparalleled performance.About Our Esteemed Company Discover Shijiazhuang Rongxin Technology Co., Ltd.
