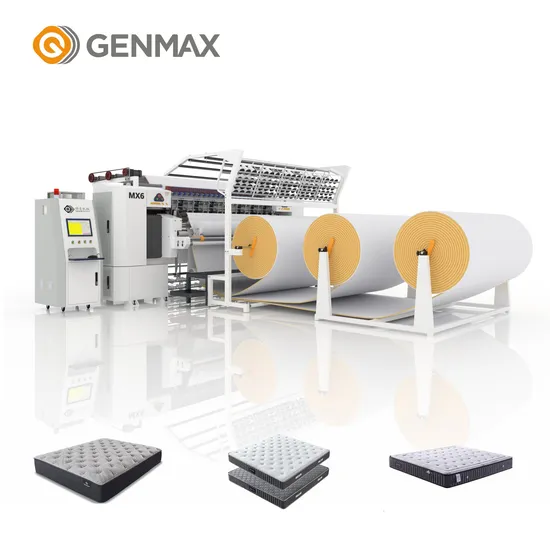

Computerized Chain Stitch Quilting Machine for Mattress

Product Description

If you need more detailed information and other models, please email us. We will promptly reply to you.
Automatic lubrication system (that works on anti friction component, ball screw and linear guideway)enables labor saving and long life of the machine.
Optional: 0.5 inch needle distance. Capable of making more patterns.
Optional: slitting system. Precisely slitting after quilting for making mattress tape.
Larger diameter of main shaft and needle bar shaft ensures the stable performance during the machine working in high speed.
Japanese famous brand bearing and precise casting spare parts are used on the machine, which ensures long life of the machine.
Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.
Delta VFD (variable-frequency driver) drives main shaft (Z shaft) and Panasoni servo driver & motor control the saddle (Xshaft) and roiler (Y shaft).
Both continuous patterns and Tack & Jump patterns (360° and 180° )are available.
Controiling system based on Windows, CAD drawing.
Automatic stop when the pre-set processing length is finished, which is saving labor and easy operation.
Automatic detection of machine running condition. Parameter

Model	MX6	Quilting Width	2450mm
Needle bar distance	50.8, 76.2, 27(5")/76.2, 76.2, 152.4(6")	Needle distance	25.4mm
X-axis movement displacement	304.8mm	Quilting thickness	<80mm
Stitch Length	3-7mm	Capacity	80-350(m/hour)
Needle Type	24/180 23/160 22/140 21/130	Main shaft speed	600-1500(rpm)
Voltage	380V/50Hz 220V/60Hz, 3-Phase	Power	11Kw
Dimension(L xW x H)	5400 x 1650 x 2050mm	Weight	5500K

---
