ID. 13000mm Space Environment Simulator Vacuum Chamber

Product Description

Space Environment Simulator

Application:
To verify the adaptability and stability of the test equipment under high vacuum and low temperature condition.
Technical specification for Vacuum Vessel

1. Structural form	vertical type
2. Material	S30408 for shell, heads, flanges and internal parts; Q345 for reinforcing rib and skirt material
3. Size of vacuum vessel	13000mm(inner diameter) x 20000mm(straight barrel height), total height 30000mm
4. Size of side container	7000mm(inner diameter), distance of side container gate flange from container center is 15500mm
5. Total leakage rate	≤1*10-6Pa.m3/s

Vacuum container is the carrier of heat accumulation, vacuum system, tank platform and other equipment, and is the heart integration of the whole system.
Design R&D Path
Machining for 13m flange
Lifting 13m head
The laser tracker is used for hole positioning and real-time monitoring of flange data

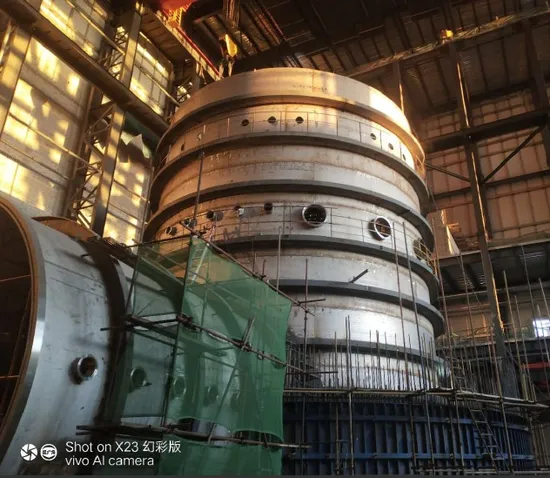

Assembling vacuum vessel and side container on site
FAQ: Q1: What's the advantage of your company? A: Our company specializes in trading for more than 13 years. We know how to solve any kinds of emergency accident during trading to give you a high quality and safety services . Choose the most suitable manufacture to satisfy your requirements is our goal. Q2: I do not have experience to purchase from China before. How to start my first order? A: It is easy and simple. Please feel free to contact with us. Experienced team is ready to help you step by step. Q3: Can I get some samples? A: Yes, we're honored to offer you samples for quality check. Q4:How to confirm the quality ? A: Third party inspection is warmly welcome before shipment. We have cooperated with SGS,IEI, CCIC,TECHNICO,BV,FIDES,etc.If you require the previous release notice issued by them,we would like to send you before order. Q5: Is it possible to know how is my product going on without visiting your company? A: We will offer a detailed products schedule and send weekly reports with digital pictures and videos which show the machining progress. Q6: What is the production cycle? A: It varies a lot depending on product dimension,technical requirements and quantity. We always try to meet customers' requirement by adjusting workshop schedule. Q7: What is your payment? A: Normally, by T/T 30% down payment, 70% balance before shipment. 100% L/C at sight is also accepted by us. Besides, we have Kun Lun bank to receive Iranian payment.

---
