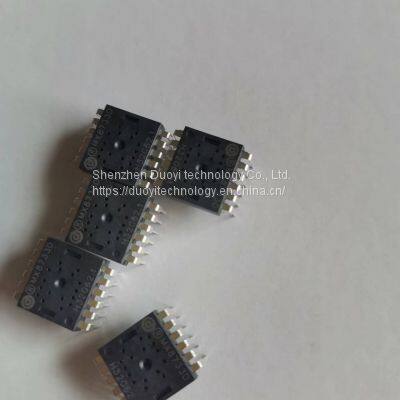

Wired mouse IC optical sensor MX8733D DIP12

Product Details

Product Description

Product Description
1. general
Mx8733d is a highly integrated chip specially designed for optical mouse with USB and PS2 interfaces. It supports USB1.1 protocol, three
Gear DPI adjustable: 1000 default /1600 /2000, supporting roller z-axis input. Built in high-precision clock generator, no external
Connected to the crystal oscillator and equipped with few peripheral components, the optical mouse can achieve excellent anti-interference, high sensitivity, very low power consumption and other performance,
And can support simplified production to the greatest extent.
2. feature introduction
1) Standard 3d4key mouse
2) Support key to change DPI (1000 default /1600 /2000)
3) Support single channel led to indicate DPI
4) Support USB and PS2 interfaces
5) 5V power supply
6) Crystal free oscillator
7) Peripheral circuit simplification
8) Comply with Microsoft WHQL, usb-if test, and compatible with mainstream windows full system operating system
9) Sdip12 environmental protection package

---
