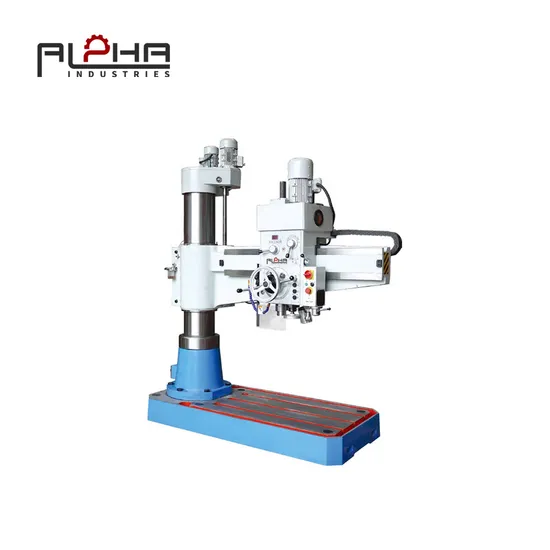

Hot Selling Rd4013-Rd5014-Rd6016-Rd8020-Rd8025 Radial Drilling Machine

Product Description

Product Description
Conventional Lathe Machines Fabricado En China RD4013/ RD5014/ RD6016/ RD8020/ RD8025 RADIAL DRILLING MACHINE Product Parameters

Model NO.	RD4013/ RD5014/ RD6016/ RD8020/ RD8025	Precision	High Precision
Automatic Grade	/	Condition	New
Certification	CE, ISO 9001	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Model No.	Unit	RD4013	RD5014	RD6016	RD8020/RD8025
max.drilling diameter(on medium-carbon steel)	mm	040	050	O62	080
max.drilling diameter(on cast iron)	mm	052	60	72	0105
max.tapping diameter (on medium-carbon steel)	mm	M32	M40	M46	M52
max.tapping diameter(on cast iron)	mm	M40	M46	M52	M60
max.distance from spindleto generating line of column	mm	300~1300	350~1400	350~1600	450~2050/450~2550
distance of horizontal movement for spindle box(manual)	mm	1000	1050	1250	1600/2100
max.distance between spindle end to the worktable surface of the base	mm	300~1200	350~1200	350-1250	400-1620
max. travel of the spindle	mm	260	280	315	400
spindle taper bore		MT.4	MT.5	MT.5	MT.6
spindle speed steps		step-less	step-less	step-less	step-less
spindle speed range	r/min	54-340-2150	38~275;275~2000	38-275;275-2000	30-220;192-1400
spindle feed steps	steps	4	6	8	8
spindle feed range	mm/r	0.10~0.63	0.10~0.63	0.06-1.00	0.06-1.38
speed of rocker arm up and down movement	m/min	1.2	1.2	1.2	1
rotation angle of rocker arm. (degree)	o	±180	±180	±180
distance of spindle movement for calibrated dial each revolution	mm	122	122	122	151
power of main motor(tranducer motor)	kW	2.2	3.0	4	7.5
power of motorfor rocker arm up and down movement	kW	1.1	1.1	1.5	2.2
pOwer of oil pump motor for spindle bo×,column and rocker arm clamping	kW	2-0.37	0.75	0.75	1.1
G.W.	kg	2300	3200	3800	6800/7400
machine dimension(L×W×H)	mm	2070×850×2430	2195×970×2480	2490×1000×2598	3090×1250×3460/ 3590×1250×3530

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
