Eyh Series Two-Dimensional Motion Mixer

Product Description

PRODUCT CATEGORIES
Product Description EYH Series Two Dimensions Mixer

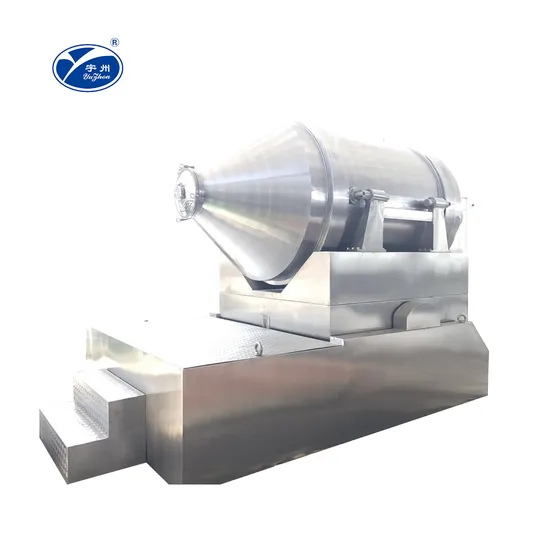

With Large production capacity, EYH two-dimensional motion blender is a high efficiency and energy saving blender . It is mainly made up of drum, swing rack and frame. Supported by four wheels, the drum is installed in the swinging rack. Materials to be mixed will be rotated when the cylinder is rotating, and will be mixed from left to right and vice versa when the cylinder is swinging. As a result of these two motions, this two-dimensional motion blender is suitable for blending of all powder and granule materials.

Model	Barrel volume	Loading capacity	Maximum loading capacity	Number of rotation	Total motor power	Overall dimension	Gross weight	Barrel weight
EYH-10	10	5	2.5	85	0.021	310×400×450×395	15	4
EYH-30	30	15	7.5	61	0.19	540×580×900×700	60	8.5
EYH-60	60	30	15	50	0.4	700×730×1100×990	115	15
EYH-150	150	75	37.5	37	1.15	800×1050×1450×1340	190	50
EYH-300	300	150	75	30	1.15	900×1350×1550×1400	340	60
EYH-600	600	300	150	23.6	3	1170×1640×2050×1910	1150	140
EYH-800	800	400	200	19.8	3	1320×1950×2150×2000	1600	200
EYH-1000	1000	500	250	19.8	3	1360×2040×2300×2170	1700	240
EYH-1500	1500	750	375	16.2	4.4	1580×2400×2550×2330	2000	320
EYH-2000	2000	1000	500	16.2	7.4	1740×2600×2770×2550	2600	430
EYH-3000	3000	1500	750	13.8	11	1800×2900×2950×2800	3500	620
EYH-4000	4000	2000	1000	12.8	13	1970×3300×3300×2950	4100	700
EYH-6000	6000	3000	1500	11.2	18.5	2300×2900×3800×3100	6100	1100
EYH-8000	8000	4000	2000	10.4	22	2540×4100×4050×3650	7900	1450
EYH-10000	10000	5000	2500	9	30	2900×4500×4400×4020	9500	1650

PRODUCT INTRODUCTION Working Principle of EYH Series Two Dimensions Mixer
The mixing barrel swings while rotates so that the materials in the barrel can be fully mixed. Because the discharge port of the barrel is out of the barrel cenbtreline, the mixer features quick mixing and discharging, as well as high volume mixing capacity.
Features
1. This two-dimensiona blending machine is sterile, dust-free and totally enclosed.
2. Two-dimensional motion blender features quick blending and discharging, as well as high volume mixing capacity.
