Mixing Wear Parts Mixing Machine Spare Parts

Product Description

Product Name:
Asphalt Mixing Plants Parts
Material analysis:
Hardness 52-62HRC
useful life more than 200000 cubic meter concrete or 300000 tons asphal
material high chromium cast iron/steel
standard CN:KM TB Cr 15-25-GTUS:ASTM A532 Class Two Type D
strength of extension 380 N/mm²
shock impact(resistance)value >5 ak N.M/CM²
flexuralstrength >600 ak N.M/CM²
certification: ISO9001:2008,
metallographic organization M+M7C3+M23C6

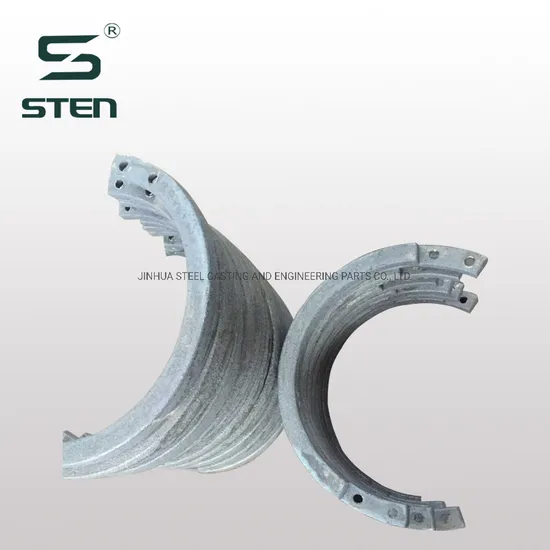

Central Mixing Blade, Mixing Tip, Mixing Liners for Speco Asphalt Mixer, Ammann, Xuetao, Ttm, Ca-Long, Dg, Xrmc, Marini, Nikko, Asphalt Plant Parts
Material Capacity:
US: ASTM A128/A532
Australia: AS2074 H1A/-H1B
British: BS 3100/ BS4844
German: GX 130 MnCr
South Africa: SABS 407 Type 1 & 2
Japan: SCMnH11
China: GB/T 5680-2010
Supported by a wide range of alloys
Austenitic manganese steels 13%MN, 18%MN, 22%MN, MN13CR2, MN18CR2, MN22CR2 MN13CRMO, MN18CRMO, MN22CRMO
High chromium white cast irons Chrome 15%, Chrome 25%, Chrome 30%
Alloy steels Various grades (SWB Germany)
Applications:
Widely used in mining industry, Quarrying & Aggregate, metallurgical industry, construction industry, chemical industry and silicate industry for crushing hard and medium hard ore and rock, such as iron ore, limestone, copper ore, sandstone, quartz and so on.
Design and Development Capabilities:
With professional designers and efficient mould making, we can correctly and quickly implement new product development.
Our company trained a group of professional designers, who have gotten long term training in Our company; besides professional skills,we think highly of complementary relationships on the job,and built teamwork,enabled personal experience and collective wisdom to be brought into play or productively. As a result,we can cooperate with customers,swiftly understand and work with them,also gain the trust of painters.
Brand:
We could supply most of the Sandvik, Telsmith, Mccloskey, Trio, Symons, Terex crusher's manganese parts and support customer's drawings.
Manufacturing Process: Pattern inspection > 2.film > 3.coating > 4.drying > 5.moldering > 6.cavity inspection > 7. combine up and lower fask > 8.vacuum Testing:
Provide Metallographic, machinery performance, hardness, ultrasonic inspection, coloring flaw testing, ultrasonic flaw testing.
Main Material Component and can also customized:

Material	C	Mn	Si	Cr	P	S
ZGMn13Cr2	C: 1.0-1.3	Mn:11-14	Si: 0.3-0.6	Cr: 1.7-2.4	P:≤0.05	S: ≤0.03
ZGMn13Cr2	C: 1.1-1.4	Mn:17-20	Si: 0.3-0.6	Cr: 1.7-2.4	P:≤0.05	S: ≤0.03
ZGMn13Cr2	C: 1.1-1.4	Mn:20-24	Si: 0.3-0.6	Cr: 1.7-2.4	P:≤0.05	S: ≤0.03

List of available Parts of STEN:

ME		SANDVIK		Telsmith	Mccloskey	Terex	PE
HP200	C3054	CH430	C12+	38	C38	1000	PE250*400
HP300	C80	CH660	JM907	44	C40	C-1540	PE400*600
HP350	C96	CH870	JM1108	52	C44	C-1550	PE500*750
HP400	C100	CS430	JM1312	57	C50	J1160	PE600*900
HP500	C106	CS440	JM1513	68	J40	J1170	PE750*1060
HP4	C110	H3800	J1107	38*58	J44	1175	PE870*1060
HP5	C120	H4800	CJ211	4448	J45	JW42	PE1200*1500
GP200	C125	H6800	CJ411	5060			PE1400*1800
GP500	C140	H7800	CJ613				PEX250*750
GP550	C150	H8800	CJ815				PEX250*1000
GP11F	C160	S2800	JM1208				PEX250*1200
GP100		S3800	JM1511				PEX350*700
GP200		S4800					PEX300*1300
GP300		S6800

About Us:
Our Products:
Our Service: Replace a new product for free or full money back for any breakage caused by any quality problems. With spare parts in stock for short delivery time. Customized with your drawings. Prompt reply for your message and email.

---
