Quality Assurance Concrete Mixer with Mechanical Hoppertdcm200-7D/13D

Product Description

TDCM510-11D

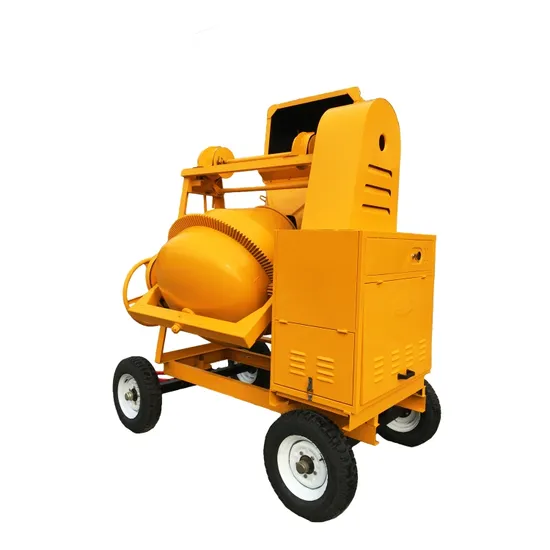

Tilting Drum Concrete Mixer
During mixing, it is very important to tilt the drum. And the raw material feeding process is suggested as follows:
Put in the water and sand first to clean off the remains of the last mix. Add the cement and turn the drum about 4 turns. The water/sand/cement mixture should be smooth and flowing evenly. Turn the drum until the color of the mix is even.
Put in the stone and turn the drum about 8 turns. Don't go too fast, let the mix fall through the mixing arms. Going fast does not make a better mix. The drum axis usually stays at an angle of about 15 degrees from horizontal during mixing.


Advantages
1.A low cost, mechanically fed, Manual tilting drum mixer
2.High capacity mixer capable of producing up to 32 batches (6 cubic metres) per hour
3.Materials loaded using a mechanical loading hopper to ensure high production rates
4.Choice of all kinds of diesel engine or 3-phase electric motor
5.Positive heavy duty driveline using roller chain bevel wheel and pinion
6.Jacking system allows wheel removal for storage during long term use
7.Outrigger legs maintain stability throughout the loading cycle
Main Specifications

	TDCM510
Power	7KW/13KW
Power source	Diesel Or Electrol Motor
Drum total Volume	660 liter
Capacity (unmixed)	320 litre
Capacity (mixed)	200 litre
Mixing time	40 sec.
Capacity Per Hour	6~8m3
Dimension	1930×2300×2950mm
Steel Thickness of Drum	4mm
Operation	Maunally Fed
Weight	1250kg/1300kg

Shipping, Delivery & Maintenance

20' container can be loaded with	4 units
40H' container can be loaded with	9 units
Delivery time	4 weeks after confirmation of the order

---
