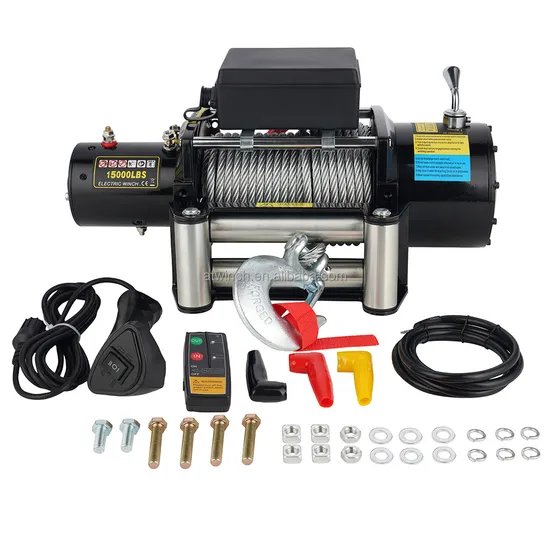

12V DC 15000lbs Electric Single Winch for Auto & Truck Customizable ODM Support Includes Gearbox

Product Description

Product Description Pure copper motor and power cable, waterproof control box, steel gears
12V DC 15000 lbs rated line pull 7HP pure copper motor Waterproof control box 3m handheld wired remote Pull-and turn clutch handle 3-stage planetary gearing with 265:1 ratio 10.5mmx26 steel wire rope Heavy duty clevis winch hook Stainless steel 4-way roller fairlead 100% full load holding automatic mechanical brake One year warranty 15000LB WINCH SPECIFICATIONS

Rated Line Pull	15000LBS (6804kgs) single line
Motor	5.1kw/7hp, series wound
Control	Remote switch, 9.8ft(3m)lead
Gear train	3 Stage Planetary
Gear train ratio	358:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The-Drum
Drum Size	Φ2.5"(88)mm×(8.8")221.5mm
Cable	Φ10.5mmX26m
Overall Dimensions	23.9"x4.5"x9"(606mm×190mm×254mm)
Mounting Bolt Pattern	253mm×114mm Φ12
Weight	N.W.54kg G.W.56Kg
Packing Size	655×235×410mm

PULL, SPEED, AMPERES, VOLTS

Line pull lbs(kgs)	Line speed ft/min(m/min)	Current A
0	25.6(7.8)	85
3000(1361)	12.18(3.7)	230
6000(2722)	9.2(2.8)	285
9000(4082)	6.9(2.1)	340
12000(5443)	5.6(1.7)	390
15000(6804)	4.6(1.4)	430

LINE PILL AND ROPE CAPACITY IN LAYER

Layer	Rated Line Pull lbs(kgs)	Total Rope on Drum ft(m)
1	15000(6804)	16(5)
2	13600(6169)	36(11)
3	11200(5080)	62(19)
4	9540(4327)	85(26)

---
