PLC CNC Column Moving Surface Grinder Machine Sg60160CNC

US$33,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
SGA
Type
Surface Grinding Machine
Processing Object
Curve
Abrasives
Abrasive Belt
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
610X1600mm
Max Grinding Machine
610X1600mm
Max Distance From Table to Spindle Cente
820mm
Wheelhead Cross Auto Feed
1~20mm
Wheelhead Cross Rapid Speed
50-1500mm
Feed of Electrto Hand Wheel
0.005mm/Gra
Wheel Head Vertical Auto Feed
0.005-0.04mm/T
Grinding Wheel Speed
960(450)
Weight
11500kgs
Total Rated Power
18.5
Wheelhead Vertical Rapid Feed
50-500mm
Grinding Wheel Size
500X75X305mm
Spindle Motor
7.5kw
Table Load
1230kg
Transport Package
Pallets
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
8501101000
Production Capacity
100PCS/Per Month

Product Description

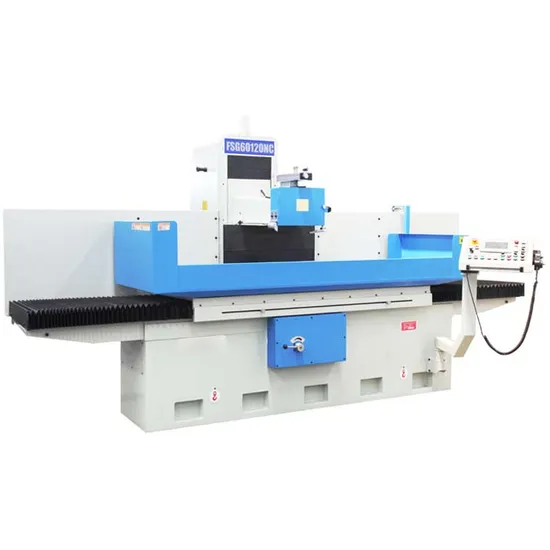

PLC CNC Column Moving Surface Grinder machine SG60160CNC
Plc cnc column moing surface grinder
Head stock runs in preloaded angular ball bearings and features a high load capacityx and y axxis guideways are counter-laminated(plastic)
Headstock runs in preloaded angular ball bearings and features a high load capacity
X and Y axis guide ways are counter-laminated(plastic)
Separate hydraulic unit with oil coole
X axis with high-dynamic, hydraulic drive
Combination of box ways and V-guides on X and Y, plus rectangular guide way on Z
Premium components ensure maximum accuracy for continuous operation
Standard accessories:
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tool box and tools
Wheel dresser stand not include diamond pen
Standard grinding wheel
Foundation bolt
Leveling wedge and bolt
Built in electro magnetic chuck controller
PLC auto grinding controller only for AHD/SD models
Wheel stand
Model Unit SG60160SD
SG60160CNC		 SG60220SD
SG60220CNC		 SG60300SD
SG60300CNC		 SG80160SD
SG80160CNC		 SG80220SD
SGA80220SD
SG80220CNC		 SG80300SD
SG80300CNC
Table size mm 610x1600 610x2200 610x3000 810x1600 810x2200 810x3000
Max grind(W x L) mm 610x1600 610x2200 610x3000 810x1600 810x2200 810x3000820
Max distance from table to spindle center mm 820(925)
Magnetic chuck size(optional equipment) mm 600x800x2 600x1000x2 600x1000x3 800x800x2 800x1000x2 800x1000x3
Speed of table longitudinal movement m/min 5~25
Wheel head cross movement Auto feed Mm/t 1~30
Rapid speed Mm/min 0.05-2
Feed of hand wheel Mm/div Mm/gra 0.005
Wheel head vertical movement Auto feed Mm/t 0.005-0.05
Rapid feed mm/min 0.05-2
Feed of hand wheel Mm/div Mm/gra 0.005
960(14050)Wheel Speed Rpm 960(1450)
Size Mm 500x75x305(450x75x203)
Motor of s500pindle Kw 18.5
Max loading capacity of table Kg 1230 1690 2300 1630 2240(3000) 3060
Total rated power Kw 28.5 28.5(29.6) 31
Height of machine Mm 2700
Floor space Mm 4700x3000 6000x3000 8200x3000 4700x3500 6000x3500 8200x3600
Gross weight kg 8500 9500 12500 10000 11500 14000
