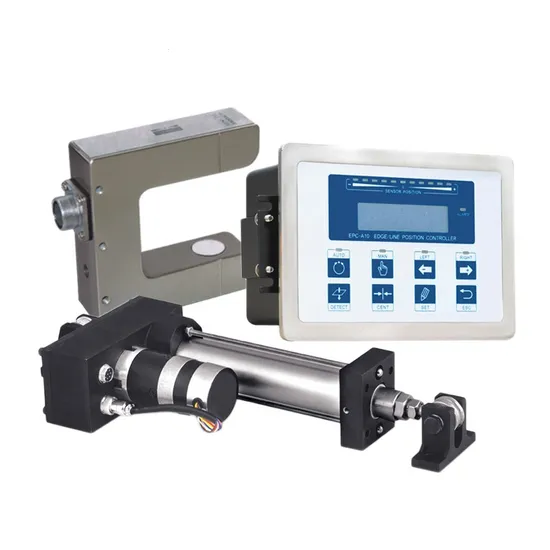

EPC Web Guiding Controller System Pd-204L150 Set

Product Description

Offset Pivot Guide System
Web guide system Product Overview: The servo motor linear drive PD-204L150 is driven by a brushless DC servo motor. Compared with other types of motors, it has high efficiency, fast speed, short response time, large starting torque, accurate braking and maintenance-free. The transmission part uses high-precision ball screw, which has high transmission efficiency, less backlash and accurate positioning, and is suitable for high-speed and high-precision rectification applications.
1. brushless servo motor drive, maintenance-free
2. precision ball screw, accurate positioning
3. no mechanical travel switch, the position is calculated by the encoder pulse
4. the thrust 150Kg to 200Kg, the maximum push 1.5T to 3T rack
5. the driving speed of 14mm / S to 400mm / S
Actuator Drawing
Application
The correction system refers to the technical operation adopted by the manufacturer to keep the sides of the coil neat and consistent during spraying, printing, punching, laminating, slitting or other coil winding processes. It is widely used. It has brought great benefits to the industry. Correction control has led to the emergence of industries such as steel, corrugated paper, textile, printing, labeling, labeling, paper, plastic film, building materials, cables, rubber, tires, and non-woven corrugated paper processing. Automatic control.
Packing:
Order Details

Item Name	PD-204L150 Web Guide System
MOQ(Minimum Order Quantity)	1set
Lead time	2-3 days after receiving the deposit
Calculated Packing Size	50cm*20cm*15cm,15kg/set
Package	Carton Box
Price Term	EXW,FOB, CIF, etc
Payment term	TT, L/C,Western Union
Country of Origin	China

---
