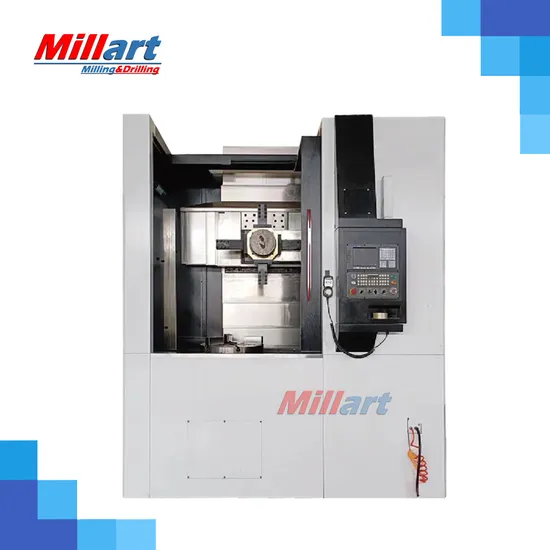

High Precision Vertical CNC Lathe Machine Vtc600, CNC Lathe Machine

Product Description

Product description:
This machine tool is suitable for processing various non-ferrous metals, ferrous metals and some non-metallic materials with high-speed steel tools and carbide tools. The following processing procedures can be completed on the machine tool: a. Turning inner and outer cylindrical surfaces and planes; various curved surfaces; b. Turning inner and outer conical surfaces; c. Grooving and cutting; d. Drilling, reaming and reaming The large castings of this machine tool use high-quality resin sand casting technology, and after rough machining, heat aging treatment is carried out to scientifically eliminate internal stress; the sliding surface of the machine tool is plasticized, which improves the wear resistance by more than 5 times and increases the accuracy of the guide rail. The sliding seat uses an independent automatic centralized lubrication device, and the electrical components use the international famous electric Schneide. The spindle bearing uses the D-class bearing.
Technical parameter :
Technical parameter :

Specifications			VTC600
Travel	x-axis	mm	450
	z-axis	mm	600
Capacity	Max swing dia.	mm	700
	Max turning dia.	mm	600
	Max turning height	mm	600
Spindle	Spindle speed	rpm	50-1000
	Axis diameter of spindle	mm	Φ130
	Spindle axial runout	mm	0.003
	Spindle radial runout	mm	0.003
	Spindle output rated torque	N.M	590
	Spindle motor power	KW	18.5
Chuck/Turret	chuck		3-jaw hydraulic self-centering chuck
	chuck dia.	inch	15in
	Turret station	mm	12
Linear guideway /ball screw	x-axis slide way	mm	45
	z-axis slide way	mm	45
	x-axis ball screw	mm	Φ40
	z-axis ball screw	mm	Φ40
Cooling / Hydraulic	Cooling motor power	Kw	0.45
	Hydraulic motor power	kw	1.5
Accuracy	Positioning	mm	±0.008
	Repeat positioning	mm	±0.003
	Least input increment	mm	0.001
Weight / Size	Size	mm	1950*1860*2800
	Weight	Kg	6500

Standard accessories: Fanuc 0i TF controller4 position NC turretCoolant systemLubricating systemWork lampSemi closed coverManual tail stockDouble chucksRear support bracketsPad ironUser manualOperate tools
Optional accessories: CNC system Siemens, GSK etcServo turret, Hydraulic turret, 6 position turretChip conveyorFull closed coverHydraulic tail stockSteady restFollow restGrinding attachment Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
