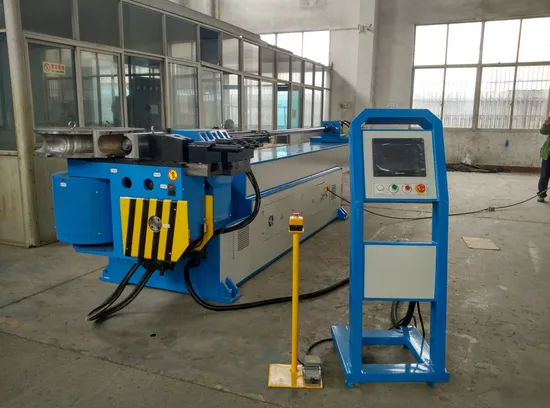

High Working Efficiency Hydraulic CNC Tube Bender Full Automatic Pipe Bending Machine for Copper, Stainless Steel, Aluminum, Carbon Steel, Alloy (114NCB)

Product Description

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-114NCB Machine Characteristic Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.
Main Technical Parameter

Name	Unit	Parameter
Max. Bending Capacity	mm	¢114*12
Bending Radius Range	mm	40-500
Max. Bending Angle	°	190°
Though Effective Distance	mm	3500
Bending Speed	°/sec	20
Bending Precision	°	±0.10
System Motor Power	KW	15
Oil Pump Delivery Volume	L	36
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	4800*1350*1300
Machine Weight	T	5.5

Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Suzhou Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken
Oil way Board	Suzhou Boguan
Cylinder	Shanghai Jingsheng
Oil tube	Suzhou Kejia
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Wenzhou Changjiang
Contactor	German SCHNEIDER(Imported)
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)

Contact Person: Mr. Ronaldo Chen
