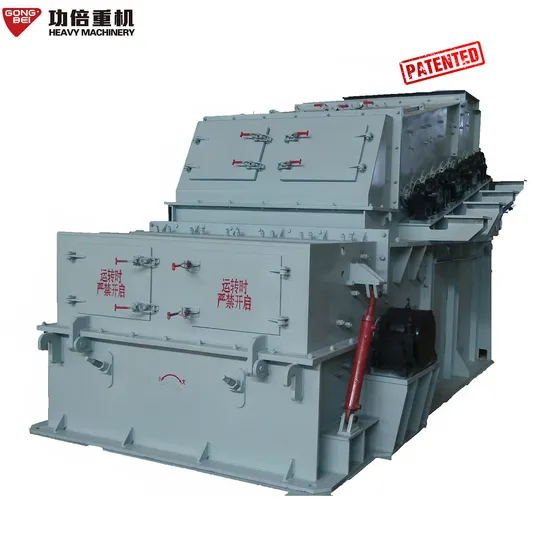

Phst Impact Crusher with Built-in Roller Screen for Coal-Fired Power Plant

Product Description

SHIJIAZHUANG GONGBEI HEAVY MACHINERY LIMITED COMPANY
≡≡≡ More screening and Less crushing for Energy saving & Emission reduction ≡≡≡ §§ Advantages 1. Sieve the mineral first before crushing to avoid overcrushing and reduce crusher load
2. Small space occupation of all-in-one machine to reduce construction expense (<3m)
3. Integration of CRS cross roller screen and PCKF reversible impact hammer crusher
§§ Application
The all-in-one screening and crushing machine is widely used in electric power, mining, metallurgy, chenical, coal, construction material etc.. The mineral hardness shall be less than 120MPa. §§ Structure The machine is composed of screening mechanism and crushing mechanism, that is the CRS cross roller screen and PCKF reversible hammer crusher. It has all advantages of those machines (No. sticking, no plugging, no pegging). This all-in-one mahcine is capable of breaking 300mm materials into 3mm to 10mm and realize both coarse crushing and fine crushing.
§§ Work principle The coal gets into the screening mechanism (CRS cross roller screen), qualified coal particles go though the screen, while large coal lumps move forward to the crushing mechanism for coarse crushing. §§ Parameters

Specification	Roller dia. X L (mm)	Input size (mm)	Discharge size (mm)	Capacity (t/h)
FHP1010	1000x1000	<300	<10	100-150
FHP1012	1000x1200			150-200
FHP1212	1200x1200			200-300
FHP1214	1200x1400			300-400
FHP1414	1400x1400	<400		400-500
FHP1416	1400x1600			450-650
FHP1616	1600x1600			650-850
FHP1618	1600x1800			800-1000

Remark: Customized product and service are available upon requests §§ Features 1. Qualified particles account for 95% to 100%
2. Maximum input size up to 400mm
3. Easy maintenance
4. Small outline dimension, one storey is enough for the machine to reduce construction cost
5. No requirement for water content
6. No overcrushing
7. Reduce crusher load, energy saving
8. Long service life and high reliability
9. No sticking, no blocking, no pegging, no plugging §§ Why choose GONGBEI products? 1. More than 40 years of technical research and development of material screening and crushing
2. The best R&D and technical personnel with the most achievements in screening and crushing fields
3. With various experiment database for then thousand materials
4. Entrusted National Inspection Center as third inspection party to ensure quality
5. Professionial aftersales service team §§ Solutions of crushing and screening technologies 1. Packaged technology for crushing and screening of material ranging form 0.1mm to 1000mm, equipment selection and development & manufacture.
2. Technology and equi0pments for crushing and screening of dry, wet and sticky materials, as well as technical upgrading service.
3. Patented technology and equipments for ultrafine grinding and crushing of material that is less than 3mm
4. Customized design and equipments dedicated for intelligent clean power generation, intensive coal separation, clean coal technology, fine chemical engineering, green mining, soil remediation, soil waste disposal and other materials handling etc..

---
