Paper Straw Making Machine for Sale

Product Description

SWXG-50 High Speed 60m/min Multi Cutters Paper Straw Making Machine Descriptions:
This Machine is suitable for producing different sizes of paper straws and very small paper tubes.
[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.
[4] Paper and glue stand is Integral Type. Euipped with Auto Paper Connection system and Glue Heating system. Improved machine running speed.
Technical Parameter:

Technical Parameter		Control System
Paper Layer	3 layers	Total Power	7.0kw
Paper Straw OD	5-12mm	PLC	Sanwin
Wall Thickness	0.5-1mm	Operating Panel	Panel Master
Stable Speed	55-60 meters/min	Inverter	3.7kw Schneider
Winding Nose	Two noses single belt	Electric Components	Schneider
Cutting System	Numerical Multi-blades (7 cutters online	Servo Motor	Schneider
Synchronism tracking cutting system	Servo motor synchronism tracking	Pneumatic Components	Jingwei
		Bearing	Haerbin
Gluing Way	Single/Double sides	Screw Rod / Slider	Shangyin
Paper Straw Collecting	Online	Configuration
Operator	1-2 person	Paper Reel Stand	3 Layers Auto Paper Connection
Power Supply	380V/3Phase/50Hz	Gluing Unit	3Layers Equipped with Heater
Measurement & Weight		Winding Belt	5 Pieces
Measurement	3500*1500*1200mm	Mandrel Shaft	2 Sets
Working Space	7000*5000mm	Cutting Bldes	15 Pieces
Weight	1400kgs	Useful Tool	1 Set

Machine Photo:

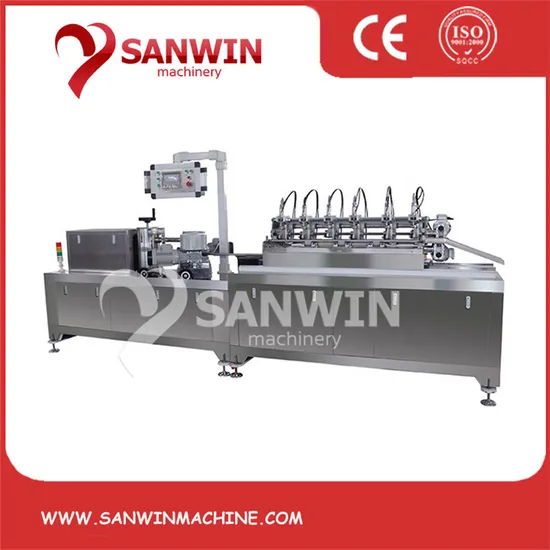

-Full Machine
- 6PCS CNC Multi-knives Inline Cutting System
-Winding Part
-L type Auto Collector
-Integral Type Paper Reel Stand & Glue Unit (equipped with Auto Paper Connection & Glue Heating)
Paper Drinking Straws
Packaging & Shipping
Our Factory:
Our Customer:
Our Service :
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any query, pls tell me freely. We will try our best to satisfy with you !
Contact us:
Contact: Ms Nancy
Mobile : 0086-15868035456
Website:sanwinmachine.en.made-in-china.com
Add:Rui'an City ,Zhejiang Province,China
