Automatic Heavy Duty Column Machining Center Moving Gantry Milling Machine Center

Product Description

Product Description

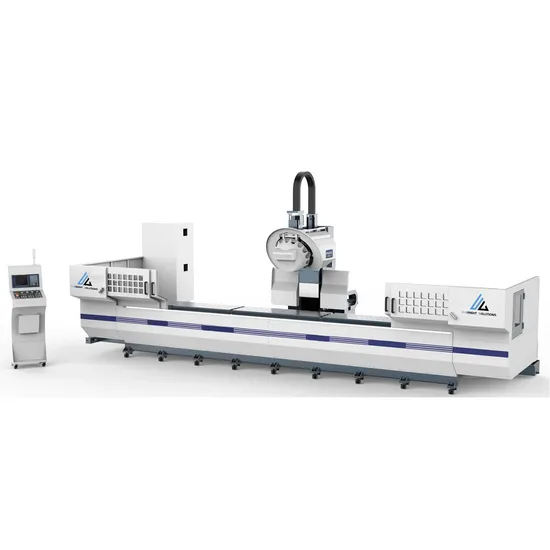

The machine for column mobile processing center, the whole machine adopts moving column, ensure the overall rigidity and compact structure, machine rigidity is good. Easy to dispose of scraps and drainage. Good precision retention, can be used for precision cutting;automotive, textile, window frame, civil aviation, motor, valve and other industries.
Applied to new energy vehicle battery trays, rail transit, mechanical manufacturing, and sheet metal processing
The PIC series is mainly used for custom home handles, radiators, TV bezels, car luggage racks, sunroof rails, trims
BT30 tapered spindle bore for the whole series, spindle outer diameter 100mm
Equipped with automatic cooling system
Equipped with disc type 16 tool magazine capacity
Large table travel, large working area, can be processed while loading
Product Parameters

route or distance of travel	X route or distance of travel	2500-6500 (other length)
	Y route or distance of travel	450mm
	Z route or distance of travel	400mm
principal axis	main shaft speed	12000rpm (24000rpm electric spindle)
	taper hole of spindle	BT30 OD: 100mm
tool magazine	Knife library form	Flying saucer style
	Knife library capacity	16 pcs
	Adjacent change knife time	2 sec
translational speed	X axis shift	60 m/min
	Y axis shift	28/40 m/min
	Z axis shift	28/40 m/min
	Cut into give speed	15000 mm/min
operating system	FANUC	SIEMENS
Spindle drive motor	5.5 kw	7 kw
X/Y / Z drive motor	3.0/1.8/1.8 KW	2.7/2.7/3.1 KW
lube oil system	self-lubricate
coolant passage	injection water cooling
definition	X axis positioning is accurate	0.05 mm (Rating 0.01mm)
	The Y / Z is positioned precisely	0.02 mm
	Repeat repeat precision (X / Y / Z)	0.01mm
rating of machine	Pressure demand	6 kg/cm²
	altitude	3300 mm
	floor space	4600-9000*2500 mm
	weight	7000-11000kg
