US$8,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
After Warranty Service
Video Technical Support
Warranty of Core Components
1 Year
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Maximum Digging Height
2790mm
Maximum Digging Depth
2100mm
Max Digging Radius
1190mm
Unique Selling Point
High Operating Efficiency
Transport Package
Containers and Fixed with Steel Wire. Wooden Box
Production Capacity
500 Sets/Year
Product Description
Product Description

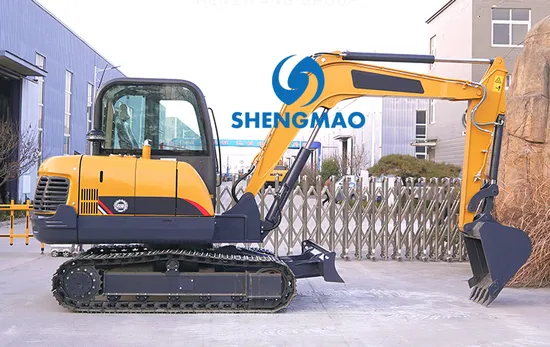

SME60 excavator
SME-60 small excavator is suitable for agricultural planting, landscaping, orchard trenching and fertilization, small earthwork engineering, municipal engineering, road repair, basement and indoor construction, concrete crushing, buried cables, laying of water pipes, garden cultivation and cleaning of rivers and ditches. Various operating environments such as silt engineering. It has the functions of digging, crushing, hook clearing, drilling, and bulldozing. The accessories can be replaced quickly. The utilization rate of the machine is greatly improved Site work.
| SME60 Excavator |
| Travel speed(H/L) | km/h | 4.1/2.5 |
| Swing speed | r/min | 9.5 |
| Fuel tank capacity | L | 115 |
| Hydraulic tank cpacity | L | 85 |
| Engine oil capacity | L | 12 |
| Length of boom | mm | 3000 |
| Length of arm | mm | 1600 |
| Bucket capacity | m3 | 0.2 |
| Overall length | mm | 21 |
| Overall width | mm | 5850 |
| Overall height | mm | 2575 |
| Width of platform | mm | 1885 |
| Overall width of chassis | mm | 1880 |
| Dozer blade(width/height) | mm | 1920*340 |
| Max digging height | mm | 5760 |
| Max dumping height | mm | 4030 |
| Max digging depth | mm | 3820 |
| Lifting Capacity |
| Lifting point height(m) | Rated lift capacity-Straight ahead (back) (kg) | Rated lift capacity-over-side (kg) |
| Lifting points radius(m) | Lifting capacity at maximum radius | Lifting point radius(m) | Lifting capacity at maximum radius |
| | 1.5 | 3 | | 1.5 | 1.5 | 1.5 |
| 4.5 | | | | *990 | | | | 870 |
| 3 | | | 870 | 750 | | | 630 | 530 |
| 1.5 | | 1640 | 830 | 630 | | 1160 | 580 | 430 |
| | | 1500 | 780 | 640 | | 1030 | 540 | 440 |
| -1.5 | *2370 | 1480 | | 810 | *2370 | 1010 | | 560 |
Our Service
Pre-sale Service
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements;
3. Providing quotations. |
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance. |
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running,and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year |
>>
