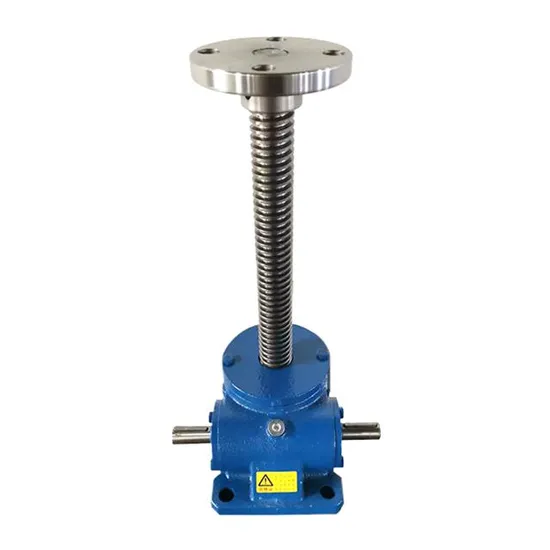

Mechanical Screw Lifter Speed Reduction Heavy Duty Screw Jacks Reducer Manual Lifter

Product Description

Mechanical Screw Lifter Speed Reduction Heavy Duty Screw Jacks Reducer Manual Lifter Product Description
1. Suitable for heavy load, low speed, and low frequency;
2. Main components: precision trapezoid screw pair and high precision worm gear pair;
3. Compact design, small volume, lightweight, wide drive sources, low noise, easy operation, convenient maintenance
Detailed Photos
Product Parameters

Type	Model	Screw thread size	Max lifting strength kN	Max pull force kN	Weight without stroke kg	Screw weight per 100mm
SWL Screw jack	SWL2.5	Tr30*6	25	25	7.3	0.45
	SWL5	Tr40*7	50	50	16.2	0.82
	SWL10/15	Tr58*12	100/150	99	25	1.67
	SWL20	Tr65*12	200	166	36	2.15
	SWL25	Tr90*16	250	250	70.5	4.15
	SWL35	Tr100*18	350	350	87	5.20
	SWL50	Tr120*20	500	500	420	7.45
	SWL100	Tr160*23	1000	1000	1010	13.6
	SWL120	Tr180*25	1200	1200	1350	17.3

Product structure
Typical models
Typical applications
Certifications
FAQ
Q: Can you make the reducer with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.
Q: Do you provide samples?
A: Yes. A sample is available for testing.
Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
Q: What's your lead time?
A: Standard products need 5-30days, a bit longer for customized products.
Q: Do you provide technical support?
A: Yes. Our company have design and development team, we can provide technical support if you
need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q: How to pay the money?
A: T/T and L/C are preferred, with a different currencies, including USD, EUR, RMB, etc.
Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
Q: How shall we contact you?
A: You can send an inquiry directly, and we will respond within 24 hours.

---
