Basic Info.
Model NO.

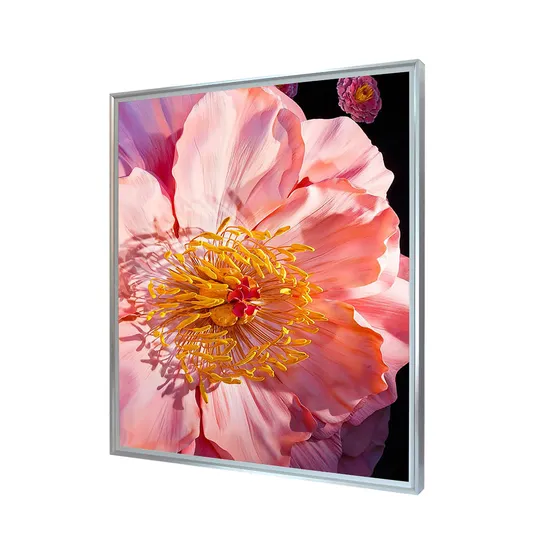

35 inch white digital picture frame
Resolution Ratio
1866X2160
Feature
Portable, USB, HD, HDMI
Image Format Support
JPG, JPEG, BMP, GIF
Usage
Gifts, Decorative, Advertising, Artistic Display
View Area
345mm(H)X345mm(V)
Pixel Pitch
0.315X0.315 mm(Hxv)
Transport Package
Standard Cartons/Flexible Container
Production Capacity
700000/Month
Product Description
Product Description best white wireless remote upload smart wifi bluetooth usb animated photo digital picture frame
1.Support Screen Cast Connect phone function iPad, and PC.
2.Support HDMI Signal input.and USB vide play
3.WIFI function 2.4GHz+5GHz+BT 2T2R
4.Support synchronized playback within the same group of advertising machines with a synchronization interval of less than 500ms.
5.Support remote setting of advertising machine properties via mobile devices, controlling volume, rotation angle, time zone, power on/off, etc.
6.Support remote monitoring of advertising machine network status, system status, hardware status, and content playback.
7.Provide various scrolling subtitles and bullet comments options, allowing customization of font, size, and content.
8.Scheduling support for multiple priority levels, including placeholder/normal/interstitial/emergency message priorities.
9.Scheduling support for various looping modes, such as daily/weekly/monthly cycles.
10.Capability to support a variety of media, including video, images, scrolling marquees, subtitles, RSS , components, ppt, pdf, etc.
11.Support for creating and modifying templates with one-click access via mobile devices (Optional software features).
Detailed Photos
Existing Digital photo frame models and Size can also be customized:
Features best white wireless remote upload smart wifi bluetooth usb animated photo digital picture frame
Product Parameters
| Display Parameters | Size | 35 inch / customized |
| Panel Type | a-Si TFT-LCD |
| View Area | 698.4mm(H)x196.45mm (V) |
| Display Ratio | >3:1 |
| Resolution | 3840X1080 |
| Display Color | 16.7M |
| Pixel Pitch | 0.181875×0.181875 (H×V) [139PPI] |
| Brightness | 400CD |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 178° |
| Response Time | 8ms |
| Scanning frequency | 60Hz |
| OSD Language | Chinese/English |
Display Interface | Video Interface | NA |
| Audio Interface | N/A |
| Other Interfaces | N/A |
System Parameters | CPU | Amlogic T982 |
| Memory | LPDDR5 8G support 4800 MHz |
| Hard Disk | 16G EMMC |
| WIFI | 2.4GHz+5GHz+BT 2T2R |
| Bluetooth | N/A |
| LAN Port | N/A |
| Interface Support | USB×1 HDMI*1 input |
| Support Connect phone function | Screen Cast |
| Operating system | Android 13 |
Power supply | Input Voltage | ~AC 100-240V 50/60Hz |
| Maximum Power Consumption | 38W |
| Standby Power Consumption | ≤0.1W(Board only) |
Other Parameters | Storage Temperature | -20--60° |
| Amplifier Power | 2×5W |
| Product Size | 722×220×22mm |
| Package Size | 830*170*325mm |
| Weight | 4.8KG |
| Attachment | Remote Control | N/A |
| AC Power Adapter | AC 24V/3A |
Custom-sized
Certifications GB/T19001-2016 ISO9001:2015 certifications
Advantage of Head sun:
1. Strong production capacity to ensure delivery.
3,000 square meters factory and dust-free workshop, more than 150 employees.
8 product lines of G+G & G+F+F and 6 product lines of CTP+LCM full-fit bonding. Monthly output can reach 40,000 pieces.
Yellow sensor light process + laser sensor process.
2. Experienced Team
More than 10 years of experience professional engineering team.
3. Accept OEM & ODM.
Customers can customize their products. You need to send the drawings and samples to us. Our engineer will evaluate it for you.
4. Modern Technology
Using mainstream touch screen yellow light process technology.
5. Strict and complete quality control system and have our laboratory for testing. So customers do not need to worry about the quality.
Exhibitions:
Packaging & Shipping All product are packing in the right size small box, then put into a big carton to protect all product in good condition.
Shippment:
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
Company Profile Head Sun Co., Ltd is a new hi-tech enterprise, which is specialized in manufacturing Touchscreen and LCD display with more than 13 years' experience. We can do customized touch panel, lcd display, lcd touch display products according to the solution and drawing of customers to achieve various structures of products as your requirement. Head Sun was established in 2011, which is located in Hua Feng Tech park, Shenzhen City, with 200 employees & an area of 3,500 square meters for factory and office. Dust-free purification workshop.
FAQ Q1. What services can we offer?
We are a professional manufacturer of projected capacitive touch panel and TFT LCD module, can help you do customized products.
Q2. What is the delivery time?
For samples: 3-15 working days upon receipt of the sample fee.
For cargo: 25-30 working days upon receipt of the payment.
Q3. What is the payment term?
payment in advance for samples.
deposit in advance, balance before shipping out for mass production.
Q4. What kind of transportation do you offer?
The goods can be shipped by sea, by air or by express such as DHL, UPS, TNT, Fedex, EMS.
>>
