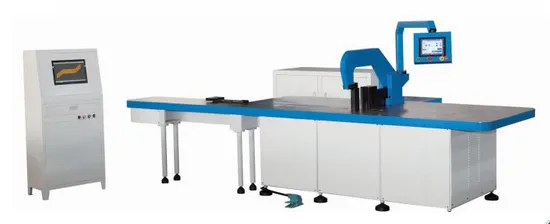

Copper Busbar Automatic Processing Both Punching and Cutting Machine

Product Description

The main performance characteristics
1.Machine used in thickness≤15mm, width≤200mm, length≤6000mm of copper platoon punched, slot, cut the feet, cutting, pressing process processing
2.Punching distance precision ±0.2mm, determine the position precision ±0.05mm, repeat positioning accuracy ±0.03mm
3.With the main, deputy two sets of clamps work at same time, to reduce the quality requirements of the copper platoon, improve the machining accuracy, in the machining process, achieve automatic clip copper platoon, reduces the personnel and the improvement of the machining efficiency and machining precision; After completion of processing using stainless steel strip drag towed workpiece, improve efficiency and guarantee the copper platoon without damage.
4.Overall scissors, can be a complete copper platoon cut, improve the machining precision and ensure the vertical degree and processing efficiency, Special embossing dies, increase the contact area copper platoon, the improvement of the machining efficiency; Mould remove installation is simple, safe and reliable, facilitate change model, for in the frequent changing mould cases high production efficiency provide reliable guarantee.
5.Use of software is my company developed the special design software (GJ3D), can be networked, realize the automation programming . The software convenient operation, intuitive stereo display copper platoon processing shape, accurately calculating blunt, cut, folding the exact location, automatically generating machine code, reduce artificial compiled code time , The software can demo rushed, cuts, fold the whole process of processing, prevent due to an error code manual input of waste .
6.Random with 8 sets of punching die, 1 set of shear mold, 1 set of embossing dies.

---
