Customized Pipe Grooving Machine Wholesaler Custom Made Roll Grooving Machine Wholesale

Product Description

Product Featurers

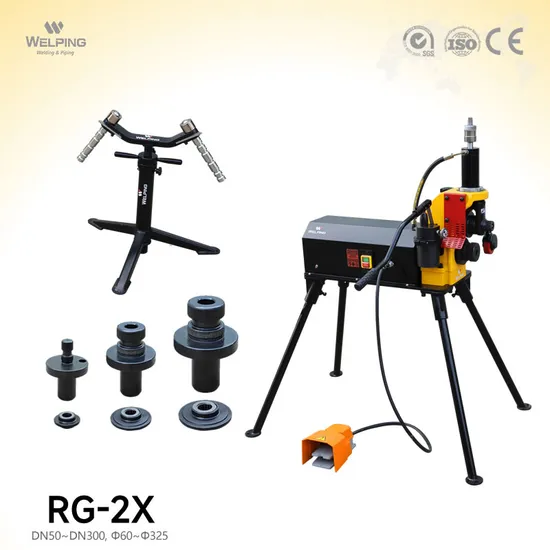

Hydraulic Electric Pipe Roll Groove Machine
*Model RG-2X Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and Stainless Steel.from 2"-12" (DN30~DN300) SCH10 to SCH40.*This product is versatile and can be used for mass production in a workshop or on a job site. It is a comprehensive roll grooverthat includes a motor, hydraulic feeding pump, foot switch, and pipe stand.*Built-in high-performance gear reduction motor plays a crucial role in achieving a compact size and low noise level.*The unique integrated hydraulic feeding pump and groove depth lock nut ensure high quality grooves and high efficiency.
PARAMETE

Model	RG-2X
Suitable materials	Carbon Steel,Stainless Steel
Capacity	for 2"-12" steel pipe SCH10/SCH40
Power supply	220V/110V
Frequency	50HZ /60HZ
Max wall thickness	10mm
Motor power	800W
Output speed	23RPM
Packing gross weight	130kgs
Packing size	82*47*88cm

Drive Unit

Catalog No.	Phase	Power	Voltage	Frequency
900020	Single	1100 W	220V	50/60 Hz
900021	Single	110 W	110V	50/60 Hz

Standard

Item Number	Description		Net weight
911022	Drive roller 2"-3"(φ60~φ89)		1.30kg
911021	Drive roller 3 ½"~6" (φ101~φ168)		1.30kg
911020	Drive roller 8"-12"(φ219~φ325)		1.40kg
912010	Groove roller 2"- 3" (φ60~φ89)		0.45kg
912009	Groove roller 3 ½"~6" (φ101~φ168)		0.45kg
912008	Groove roller 8"-12"(φ219~φ325)		0.45kg
998078	Pipe stand for 1"-12"		6.90kg
998026	Foot switch		1.50kg

Detailed Images
Product specifictions Fine-Structured parts
All for qualified performace
Pipe Stand
2"-12" (Φ60-Φ325)
Drive Roller
One Set 2"-3" (Φ60-Φ89)
One Set 31/2"-6"(Φ101-Φ168)
One Set 8"-12"(Φ219-Φ325)
Groove Roller
One Set 2"-3" (Φ60-Φ89)
One Set 31/2"-6"(Φ101-Φ168)
One Set 8"-12"(Φ219-Φ325)
Pipe Stabilizer
Protect the pipe from moving
Foot switch
Product Packing
Company Introduction About Welping
To help customers succeed in the field of plastic pipe jointing, WELPING had been focusing on thermoplastic welding equipment developing, manufacturing and selling since 2005. We aim to bring industrial level design, performance and quality together, to help you build reputation.
To suit different welding applications and market requirements, we are offering differentlevel items represented by brand WELPING,YOVIDA, VOLKIR. Brand WELPING enjoys a high reputation for exportation, benefiting from the steady product quality andperformance. Thanks to our experienced engineers, WELPING can help you to quickly decide OEM and ODM reguirements. At the same time, we are improving and updating products line to better suit field requirements.
WELPING knows the importance of fast delivery for our customers. To better shorten poroduction lead time. we consolidate critical production procedures into selfmanagement, like aluminum die casting, laser cutting, metal fabrication, CNC machining, powder coating etc.Standard items and light-OEM items, WELPING can finish in around 10-15 days.
FAQ
Q1.Payment
A: Generaly, Usual payment term ls Of T/T remitance before shipment or against B/L copy. We can also accept other terms according to the clients and order amount.
Q2. Terms of deliveryA:EXWFOB.CFR.CIF
Q3. Delivery time
A: 10-30 days after receiving your advance payment. The exact delivery time depends on the items and the quantity of your order
Q4.Package
A: Goods will be packed in Carton, plywood case and in pallet if required.
Q5.OEM
A: lf you can provide your samples or technical drawings. We can open the mold and produce accordingly
Q6. Quality testA: we test 100% bulk before delivery
Q7: Product WarrantyWe Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.

---
