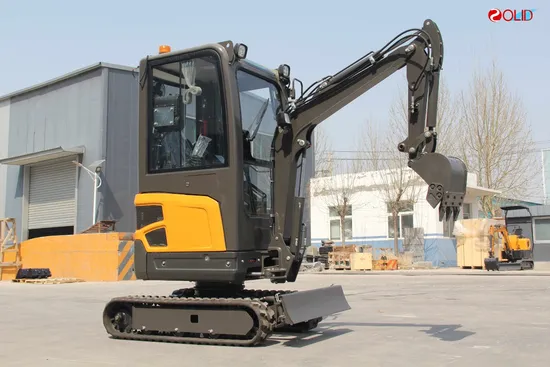

The Best CT16 Small Track Crawler Digger Excavator with Hammer Breaker

Product Description

Product Description
Introductions Of CT16 Road Crushing Mini Excavator Prices 1600kg 1.6 Ton Excavators Small Digger With CE Small excavators are widely used in greenhouse orchards, mountain ditches, rural renovation, indoor and outdoor, construction projects, road finishing and other working conditions.
1. Preheating of the hydraulic device. When the temperature of the hydraulic oil is low, rapid operation will cause damage to the hydraulic device.
1.1. The small excavator engine runs at a medium speed, operates the bucket, and preheats;
1.2. Jack up the machine to rotate the crawler, and preheat the left and right travel motors respectively;
1.3. Then, raise the speed of the engine to the highest, and make the bucket and stick work continuously for 5 minutes;
At the same time, the safety of the surrounding environment should be fully paid attention to during the warm-up operation. When the temperature is low, the reaction of people will be relatively slow, so it is necessary to prevent people and objects around them during warm-up.
Second, the preheating of the small excavator engine, the first step in getting on the car, the engine should be started and run at low speed for 5 minutes. At the same time, the following inspections should be carried out during the warm-up process of the small excavator engine:
2.11. Whether the oil warning light is off;
2.2. Whether there is oil leakage or water leakage;
2.3. Whether the sound of the engine and the color of the exhaust are normal;
2.4. Whether the charging indicator light is off;
2.5. Whether each part of the machine is abnormal.

Product Parameters
Specification of mino excavator /mini digger/digging machines /small excavator CT16
1 Engine have passed CE/EPA certificate.
2 Originally imported Yammar engine, low noise, low fuel consumption, big torque.
3 Power system and hydraulic system cooperate well to improve 10% dig power.
4 Optional extension track to improve stability.
5 Boom deflexion meet narrow work condition.
6Optional hydraulic quick hitch, hammer, breaker, ripper , drill, etc.

Engine

Travel System

Model

Yanmar 3TNV70

Travel motors

Eaton, USA

Type

Direct injection, water cooled, natural intake

Support roller quantities

2×3

Carrier roller quantities

2×1

No. of cylinder

3

Travel shoes

No

Bore and stroke

70x74(mm)

Travel speed

2.7/5.0(km/h)

Displacement

0.854L

Drawbar pulling force

11.7kN

Power output

10kw/2200rpm

Gradeability

58%(300)

Max. torque

50N.m/2000rpm

Ground clearance

160mm

Hydraulic System

Cab & Electrical System

Pump

CASAPPA, Italy

Cab

All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat, Front Window can be opened and slided; adjustable Seat

Type

Axial-piston pump+gear pump

Max. discharge flow

2x20+15.1(L/min)

Max. discharge pressure

Boom, arm and bucket

17 MPa

Voltage

12V

Travel circuit

12 MPa

Batteries

1X12V

Swing circuit

9 MPa

Battery capacity

60Ah

Control circuit

3 MPa

Boom, Arm & Bucket

Pilot control pump

Gear type

Boom cylinder

Φ60xΦ35xS440-L770

Main control valves

Hydro Control, Italy

Arm cylinder

Φ60xΦ35xS330-L600

Oil cooler

Air cooled type

Bucket cylinder

Φ55xΦ30xS300-L560

Swing System

Refilling Capacity & lubrication

Swing motor

Eaton, USA

Fuel tank

28L

Swing motor type

Axial-piston motor

Cooling system

8L

Brake

No

Engine oil

4.4L

Parking brake

No

Hydraulic oil tank

17.5L Tank Oil Level

Swing speed

8.8 r/min

24L Hydraulic System

Bucket

Type

Backhoe bucket

Bucket capacity

0.04m3 (SAE)

Bucket Capacity scope

0.028-0.095m3

Number of bucket teeth

3 or 4

Bucket width

450 mm

Working ranges

Boom length

1829m

Arm length

950mm

A

Max. digging height

3281mm

B

Max. dumping height

2393mm

C

Max. digging depth

2033mm

D

Max. vertical digging depth

1605mm

E

Max. digging distance

3941mm

F

Max. digging radius at ground level

3878mm

G

Min swing radius of work equipment

1625mm

A

Bucket digging force

11.2 KN

B

Arm digging force

9.1 KN

Overall Dimensions

A

Overall length

3694mm

I

Track grounding length

1210mm

B

Ground contact length(Transportation)

2366mm

J

Track length

1588mm

C

Overall height(to top of boom)

1157mm

K

Track gauge(extension 1090mm)

760mm

D

Overall width

1000mm

L

Track width(extension 1320mm)

990mm

E

Overall height(to top of cab)

2411mm

M

Track Shoe width

230mm

F

Counter weight ground clearance

207mm

O

Bonnet height

1222mm

G

Min. Ground clearance

160mm

P

Revolving frame width

1000mm

H

Tail swing radius

660mm

Q

Distance from swing center to tail

665mm

Operating Weight and Ground Pressure

Operating weight

1700kg(with canopy)

Ground pressure

28 KPa

M
Attached Tools
Attached Tools for Mini Excavator
Breaking Hammer
When you need to break up the asphalt or concrete pavement, or some other hard surfaces, the excavator breaking hammer could help to finish the work with the great impact of energy.
Drilling Auger
Powered by hydraulic circuits, and equipped with a spiral blade, the drilling auger has the ability to reach over objects and drill deep holes. Augers come in different specifications and sizes for various digging conditions and terrains such as landscaping and construction for the consistent holes.
Buckets
Buckets are the most standard attachments seen on excavators. Besides the common size installed on excavators, there has also some other options for a different purposes. The width could be200mm,250mm,450mm,500mm,600mm,1000mm, etc. with or without bucket teeth.Besides, the tilt bucket is also available for special works.
Quick Hitch
A quick hitch is also called a quick coupler, driven by mechanical or hydraulic power. Couplers allow you to quickly switch between tools and attachments without a crew when you need multi-tools on the excavator. They can help maximize the versatility of your excavator and boost your team's productivity
Ripper
Rippers are another excellent attachment for tearing through tough materials. These durable tools can break up frozen ground or demolish structures.
Rated Excavator
Packaging & Shipping

When the mini excavator comes to packaging, we have to at first
consider the ordering quantity. If only 1 or 2 sets, we usually put the digger excavator in the wooden box and fix it inside. lf the quantity is big, we could load them into the container and fix them. Our experienced packing team could do it quite well.
1,lf the quantity is 1 or 2 sets, we do the packing by fumigation wooden box
2,One 20GP could fit 4 sets of HX20 model,one40HC could fit 30 sets of HX10 model
3,The quantity of each model could be fitted in the container, please inquire us
4,The professional packing team will make everything within the exporting standard

Working Case
Features
MINI EXCAVATOR Features:
SOLID Heavy Industries has recently developed a mini excavator known as the "Indoor Elf," designed to be compact, flexible, and easily mobile. This innovative machine saves time and effort and is suitable for indoor, orchard, agricultural, municipal, industrial, and various other applications.
Key Features:
1. Equipped with an engine that complies with Euro V emission standards, providing robust power, stable performance, and smooth, low-vibration operation.
2. Utilizes hydraulic components exclusively provided by Cater Heavy Industries for stable operation and high reliability.
3. User-friendly design for control and switch mechanisms, making operation easy and enhancing working comfort.
4. Maintenance is made convenient with a rear-hinged overall machine cover, facilitating servicing and inspections.

Company Profile
SOLID was founded in 2008 year. Since then, SOLID has stood at the forefront of the Chinese construction machinery industry and developed into one of the domestic industry's largest, most influential, and most competitive enterprise groups with the most complete product varieties and series.SOLID is ranked 65th in the list of China's Top 500 Companies, 44th in the list of China's Top 100 Manufacturing Enterprises, and 2ND in the list of China's Top 100 Machinery Manufacturers. SOLID is dedicated to its core value of "Taking Great Responsibilities, Acting With Great Morals, and Making Great Achievements" and its corporate spirit of being "Rigorous, Practical, Progressive, and Creative" in order to keep moving towards its ultimate goal of becoming a leading world-class enterprise capable of creating real value.SOLID mainly supply Hoisting machinery, MiningMachinery Machinery, , Excavators, Loaders, Road Machinery, Piling Machinery, Non-Excavation Machinery, Concrete Machinery, Special Vehicle, Aerial Working Equipment, Sanitation Machinery, Fire-fighting Machinery, Tunnel Machinery, Resource Exploration Machinery, Port Machinery and so onSOLID products, including mechanical vibratory road rolls, mini excavators .mini digger ,and motor graders, have successfully participated in the construction of the largest railway project in the Philippines, thanks to their outstanding performance and comprehensive after-sales service. These three types of machines have contributed to the project's progress in an organized manner. During our on-site visits to customers, they expressed that SOLID products are reliable in quality, and the compact excavator equipped with a hydraulic breaker delivers excellent impact force. This effectively ensures the project's advancement and contributes to its completion within the expected timeframe, providing additional momentum to the development of local livelihood projects.

---
