CNC Horizontal Machining Center CNC Horizontal Milling Machine Center for Metal

Product Description

One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Product Description

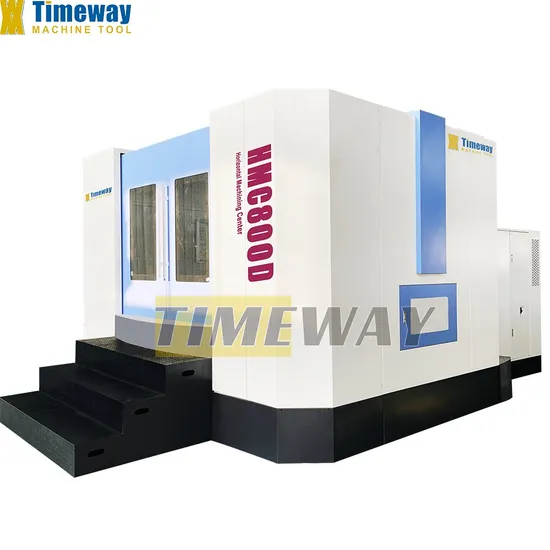

CNC Horizontal machining center

SPECIFICATION	UNIT	HMC500D	HMC630D	HMC800D
Machine structure	-	inverted T-type	inverted T-type	inverted T-type
X-axis travel	mm	740	1050	1300
Y-axis travel	mm	680	750	1000
Z-axis travel	mm	650	900	1000
B-axis servo motor torque(FANUC)	-	bis12	bis22	bis22
Table size	mm	500x600	630x700	800x800
Table indexing	°	1°×360	1°×360	1°×360
T-slots(No./width/pitch)	-	5-18-100	5-18-100	6-22-125
Table rotation speed	rpm	16.6	11.1	11.1
Loading capacity	kg	600	750	1500
Locking force(35kg/cm2)	kg/m	5000	5000	5000
Distance spindle center to table	mm	120-800	120-870	120-1120
Distance spindle nose to table center	mm	130-780	130-1030	200-1200
Spindle taper	-	BT-40	BT-50	BT-50
Spindle speed	rpm	8000	8000	8000
Main motor power	kw	11/15	15/18.5	15/18.5
X/Y/Z-axis servo motor(FANUC)	-	Bis30/Bis30/Bis30	Bis30/Bis30/Bis30	Bis40/Bis40/Bis40
X/Y/Z-axis cutting feed speed	mm/min	1-8000	1-8000	1-8000
X/Y/Z-axis rapid feed speed	m/min	24/24/24	24/24/24	24/24/24
X/Y/Z-axis rails type	-	Linear	Linear	Linear
X/Y/Z-axis positioning accuracy	mm	±0.01	±0.01	±0.01
X/Y/Z-axis repeat positioning accuracy	mm	±0.006	±0.006	±0.006
B-axis positioning accuracy	"	±10"	±10"	±10"
ATC capacity(style)	tools	24(Disc)	24(Disc)	24(Disc)
Tool change time(tool to tool)	sec	2.7	5	5
Max. tool weight	kg	8	18	20
Max. tool diameter	mm	Φ78/Φ125	Φ112/Φ200	Φ125/Φ230
Max. tool length	mm	300	300	300
Power supply	Kva	30	40	50
Air pressure require	kg/cm2	8	8	8
Machine weight	kg	9000	11000	15000
Overrall dimension(LxWxH)	mm	3800x3200x3280	4860x3600x3460	6200x48003800

MAIN CONFIGURATION & ACCESSORIES: 1. Resin sand casting; 2. X, Y, Z rails adopts imported linear guideway; 3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC,disc type and chain type are available as option; 7. Imported bearings for leadscrews; 8. Imported coupling; 9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option; 10. NC rotary worktable (B axis); 11. Work lamp; 12. Pilot lamp; 13. USB and LAN interface; 14. Manual pulse generator (MPG); 15. Centralized automatic lubrication system. 16. Cooling system. 17. Heat exchanger for electrical cabinet ; 18. Leveling blocks & bolts; 19. Toolbox and tools; 20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

OPTIONAL CONFIGURATION & ACCESSORIES: 1. ZF or BF reducer; 2. Circular Coolant Nozzle; 3. Coolant through spindle (CTS); 4. Spindle oil cooler; 5. Air conditioner (A/C) for electrical cabinet; 6. Auto. Tool length measurement system; 7. Auto. Workpiece measurement systems; 8. Optional with sprial type chip conveyor and chain type chip conveyor

Detailed Photos

BT50 Power Spindle

40 Tools Chain Type ATC

Inverted T-type

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
