US$22.00-100.00
|
1 Set
(MOQ)
|
Basic Info.
Projection Distance
25-35m
Application
Park, Square, Factory, Garden
Certification
CE, CQC, EMC, LVD, RoHS
Operating Voltage
100-240V
Surface Treatment
Powder Coating Anti-Corrosion Anti-Salt Spray
Housing Color
White Black Grey Customized
Beam Angle
8 15 25 30 40 60 90 120 Degree Asymmetric
Material
Tempered Glass PC Lens Wago Connector
LED Type
5050 / 3030 /3535 LED Chip
Option
Light Shied / Light Visor
Tooling
Die-Casting Aluminum Private Mould
Anti-Vibration Rating
3G Vibration / 5g Vibration
Installtion
Bracket Adjustable
Service
Dialux Light Simulation
Specification
309*364*121mm
Production Capacity
2000000
Product Description
Product Description

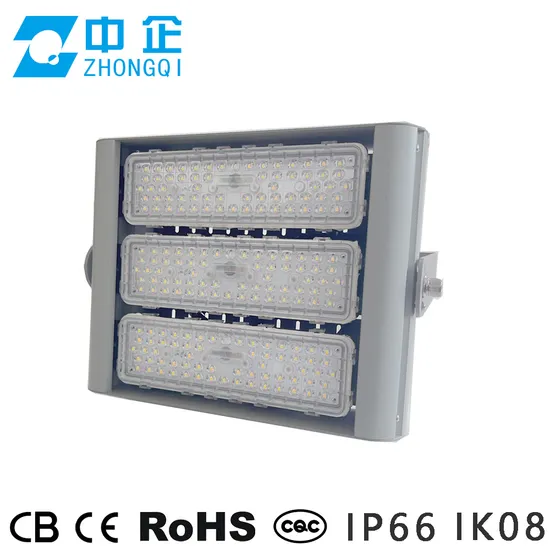

| Product Features |
| Patented design combined with many advanced technologies |
| High strength Aluminium extruded housing, modular design, strong resistance to impact and corrosion |
| 2G vibration test approved under American standard ANSI C136.31. |
| Multiple beam angles for your options: 12/25/40/60/90/Asymmetric |
| Single or multiple LED module arrays at your options, to provide more power range for different application environment |
| LED modular design offers simple maintenance |
| IP66 IK08, suitable for various application environment. |
| Stainless mounting bracket for options |
Product Parameters
| TECHNICAL PARAMETERS |
| Item name | Input voltage | Freqency range | Power Factor | CRI | CCT | Lifetime | Ta |
| Flood light | AC90-305V | 50/60HZ | 0.95 | >70 | 2200-6500K | >50000H | -25ºC~55ºC |
| IP Grade | IK | LPW | THD | Dimming | Color | J-BOX | Lens degree |
| IP66 | IK08 | 100-160 | ≤20% | YES | Customized | Optional | 25/40/60/90/
Asymmetric |
| Product Model | Power(W) | Premium LPW(lm/W) | Standard LPW(lm/W) | N.W.(kg) | G.W.(kg) | Product Size(mm) | Packaging Size(mm) |
| TYZQ-FD015B | 100 | 160 | 130 | 4.70 | 5.40 | 309*364*121 | 360*430*150 |
| TYZQ-FD015B | 120 | 160 | 130 | 4.70 | 5.40 | 309*364*121 | 360*430*150 |
| TYZQ-FD015B | 150 | 160 | 130 | 6.00 | 7.00 | 349*364*121 | 390*430*150 |
| TYZQ-FD015B | 180 | 160 | 130 | 6.00 | 7.00 | 349*364*121 | 390*430*150 |
| TYZQ-FD015B | 200 | 160 | 130 | 7.30 | 8.50 | 389*364*121 | 430*430*150 |
| TYZQ-FD015B | 240 | 160 | 130 | 7.30 | 8.50 | 389*364*121 | 430*430*150 |
| TYZQ-FD015B | 300 | 160 | 130 | 9.50 | 10.90 | 509*366*121 | 560*430*150 |
| TYZQ-FD015B | 360 | 160 | 130 | 10.40 | 11.90 | 589*366*121 | 620*430*150 |
| TYZQ-FD015B | 420 | 160 | 130 | 11.90 | 13.40 | 669*366*121 | 700*430*150 |
Product Applications
Company Profile
Packaging & Shipping
FAQ Q1:Can I have a sample before quantity orders?
Yes,we welcome sample order for your approving
Q2.What about lead time?
Sample 3-5 days, quantity order 25-30 days
Q3.ODM or OEM is accepted?
Yes,we can offer ODM&OEM service
Q4.Howe long the warranty for your products?
We offer 2-5 years warranty to our products
Q5.What about the payment?
30% TT deposit, 70% before shipment
>>
