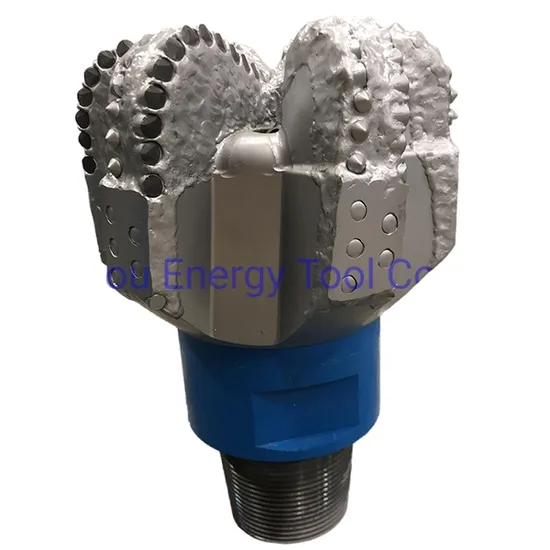

PDC Diamond Hard Rock Drilling Drill Bit for Oil Water Well Drilling

Product Description

PDC Hard Rock Drilling Drill Bit for Oil Well Drilling
Product Description
PDC drill bits
Polycrystalline diamond materials, for use in polycrystalline diamond compact (PDC) bits, are one of the most important material advances for oil drilling tools in recent years.
Fixed-head bits rotate as one piece and contain no separately moving parts.
When fixed-head bits use PDC cutters, they are commonly called PDC bits.
Since their first production in 1976, the popularity of bits using PDC cutters has grown steadily, and they are nearly as common as roller-cone bits in many drilling applications.
Steel-body
Steel is metallurgically opposite of matrix.
It is capable of withstanding high impact loads, but is relatively soft and, without protective features, would quickly fail by abrasion and erosion.
Quality steels are essentially homogeneous with structural limits that rarely surprise their users.
Steel body bits are manufactured by machining the steel bars per design.

SPECIFICATION
Size :	12 -1/2" (149.2mm)
Drill Body Type :	Steel Body
Blades Quantity :	6
Nozzles Quantity :	6
API Connection (in) :	3-1/2" REG
Gauge Length (In):	2
OPERATIONAL PARAMETERS
Weight on Bit (KN):	89-178
RPM Range (Rotary):	100-DHM
Flow Rate (lps):	47-58 lps
Make-Up Torque (KN):	25-40

Production Process

Certifications
Packaging & Shipping
FAQ

Q: You are a trading company or manufacturer ?

A: Manufacturer, We are a 100% real factory with over 20 years' experience in water/oil/gas wells Drill Bits.

Q: How about your products ?

A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service.

Q: Package Methods ?

A: Normally wooden case, also can be steel box; can be customized if need.

Q: Payment Terms ?

A: we accept T/T, L/C, Paypal, Western Union, etc.

Q: Can I visit your factory ?

A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online.

---
