Product Description
Product Description

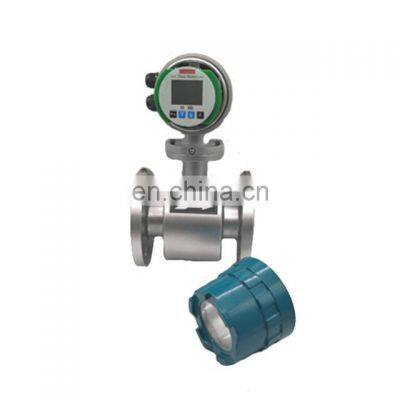

Product DescriptionThe magneric flow meter is one of the most flexible and unversally applicable flow measurement systems available. It is volumtric flow meter which does not have any moving parts and is ideal for waste water applications or any dirty liquid which is conductive or waste based. Magnetic flow meter is also ideal for the applications where low meter is also ideal for the applications where low pressure drop and low maintrnance are reequired.SpecificationPlace of OriginChinaBrand NameTmeasurementModel NumberTEM82ETypemagneric flow meter CertificatesISO9001:2008;CEFlow directionpositive; negativeAccuracy±0.5%/0.2% of rateComsumed power<20WRelative humidity5%~95%Velocity0.3-10m/sAmbient temperature-20...+60℃DiameterPTFE:DN6-DN600High-temp rubber liner-20...+90℃ItemTEM82E MAGNETIC FLOW METERDetailFollowing Faraday's law of magnetic introduction, a voltage is included in a conductor moving through a magnetic field. In the electoromagnetic measuring principle, the following medium is the moving conductor. The voltage induced is proportion to the flow velocity and is supplied to the amplifier by means of two measuring electrodes. The flow volume is calculated by means of the pipe cross section area.ApplicationCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Related ProductAbout Us1. 18 Month's Warranty.2. MOQ:1 set.3.Ready to ship out within bysea,TNT,DHL,FedEX,as soon as we receive payment.4. We accept T/T,Western Union,PayPal & Secure Payment.DALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, ChinaWhatsapp/Wechat:+8618842866177E-mail：commercial(at)
>>
