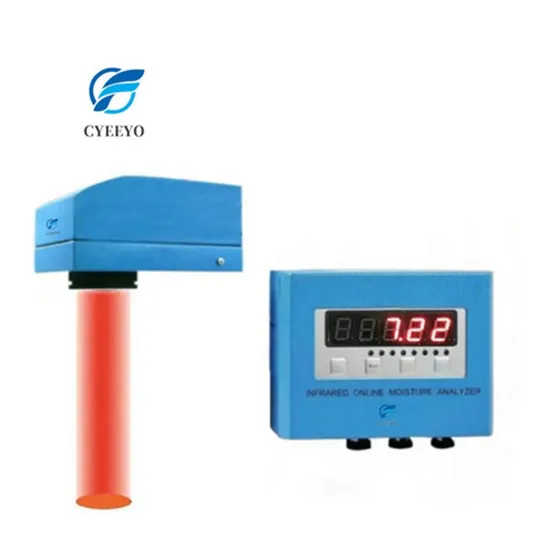

Conveyor Beltinfrared Digital for Coal Online Moisture Analyzer Sensor Meter Analyser
US$6,700.00
1 Piece
(MOQ)
Basic Info.
Model NO.
CY-400
Type
Induction Moisture Meter
Analysis Method
Physical Analysis
Display
Digital
Application
Textile
Portable
Non-portable
Physical Analysis Type
Distilling Layered Method
Chemical Analysis Type
Toluene Method
Operating Mode
Keyboard
Heating Mode
Step Heating
Off Mode
Automatic
Est Range
0-99%
Resolution
0.01%
Measuring Distance
20-40cm
Light Diameter
10mm
Power Supply
AC 220V 50Hz
Transport Package
Plywood
Specification
75cm*65cm*70cm
Trademark
CYEEYO
Origin
Shan Dong
HS Code
9027500090
Production Capacity
100
Packaging & Delivery
Package Size
69.00cm * 98.00cm * 187.00cm
Package Gross Weight
89.000kg
Product Description
Infrared Digital for Coal Online Moisture Analyzer Sensor Meter Analyser TECHNICAL SPECIFICATIONS Measurement range: 0-50% (the maximum measurement range is when the material is saturated with water) Static accuracy: ±0.1% Measurement accuracy: ±0.2% (change in material composition will cause measurement error) Measurement channels: 50 Height range: 250mm±100mm Operating temperature: 0-50ºC Operating humidity: 5-90% Repeatability: 0.1% Response time: 0-60 seconds Filter range: 0-2.5% Power supply: AC 110-240V 50Hz/60Hz Power consumption: 150W Light interference: not affected by changes in external light and no need for a hood over the probe Temperature influence: With automatic temperature offset function, it is basically not affected by changes in external temperature. The probe should be installed in an easily accessible place. First, it should be easy to sample under the probe and easy to maintain (such as wiping windows, cleaning surfaces, etc.); (1) The machine should be installed in a safe position for measuring where the material to gauge will not have direct contact with the probe; (2) probe installation height and direction: (see Figure 2.1) The probe is to be installed over a certain material that is not fragmented as on a conveyor belt or a vibrating conveyor. Note that the material must at least demonstrate a thickness of 10mm (recommended 15mm above) in order to completely ignore the conveyor belt as a source of possible confusing effect in the background. (3) In order to allow for a longer period of time for the material to reach a state of balance before taking measurements, the probe of the dryer or other equipment for adjustment is preferably installed as far as it can be from the steam outlet; (4) It is a basic requirement for the production line to ensure that the material to measure embraces a certain degree of consistency and continuity in the production process; (5) The consistency of the material has a great influence on the measurement accuracy compared with the oven drying method, especially on the latter's double-sampling deviation.
