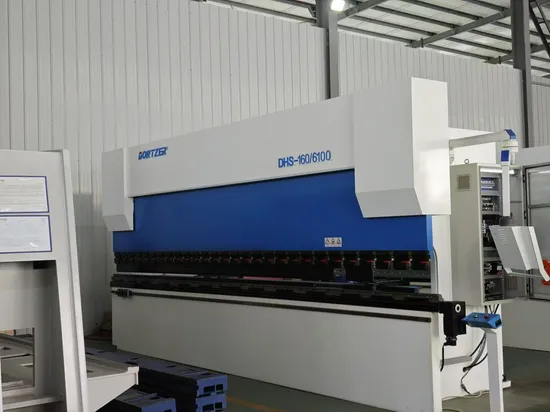

160/6100 Hydraulic Automatic CNC Bending Machines Hydraulic Sheet Metal Press Brake

Product Description

Product Parameters

NO.	Name		unit	parameter value
1.	Nominal pressure		ton	160
2.	Length of bending table		mm	6100
3.	Column spacing		mm	5100
4.	Cylinder stroke		mm	220
5.	Maximum opening height (without table)		mm	520
6.	Depth of throat opening		mm	550
7.	Speed of slider movement	unladen	mm /s	160
8.		working	mm /s	10
9.		backhaul	mm /s	120
10.	Main servo motor power		KW	11KW
11.	Overall dimensions (L×W×H)		mm	6600x1645x3100
12.	Machine weight		kg	16600
13.	Slider repetition accuracy		mm	≤±0.01
14.	Slider positioning accuracy		mm	≤±0.02
15.	Rear stopper X-axis travel		mm	600
16.	Rear stopper X-axis running speed		mm/s	0-300
17.	Rear stopper R-axis travel		mm	200
18.	Rear stopper R-axis running speed		mm/s	0-75
19.	Resolution of the scale		mm	0.005

Product Description
Standard with Swiss CYBELEC CT12 CNC (other systems optional)
Rexroth high-performance servo-hydraulic control synchronisation system
Two sides with high-precision imported scales to detect the synchronous position
Backstop for precision steel parts.
With high-performance servo motor and ball screw (Taiwan)
Mechanical lower table deflection compensation with DNC system control
With energy-saving main servo oil pump

Certifications

Company Profile

FAQ
1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and the punched drawing.

---
