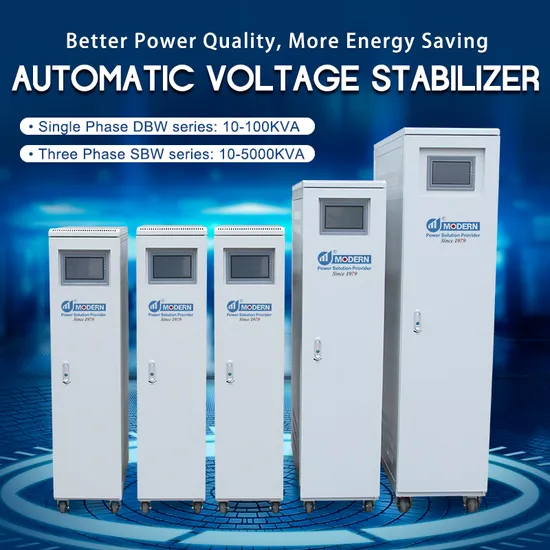

Single Phase and Three Phase 10-5000kVA Automatic Voltage Stabilizer/Voltage Regulator

Product Description

Input

Input voltage	220/380V, 230/400V, 240/415V system, other voltage system can be customized
Input Range	±20% (±15% ~±50% can be customized)
Input Frequency	50/60Hz

Output

Output Voltage	220/380V, 230/400V, 240/415V system, other voltage system can be customized
Output Accuracy	Selectable:±1% to±5%,Factory preset:±2%
Waveform Distortion	Nil
Power Factor	0.8~1
Efficiency	≥98%(full load)

General

Working Principle	Servo motor, microprocessor controlled, full automatic
Insulation Class of Transformer	H class
Method of Voltage Regulation	Three phase independent regulation
Indicators	Voltage, Current, Power, Parameters setting, F ailure information
Cooling	Natural/forced air
Protection Level	IP21(indoor), IP54(outdoor)
Electrical Safety	CE equivalent

Environmental

Working Temperature	-20°C to +50 °.C
Altitude	<1000m
Relative Humidity	<90%
Noise	<55dB

Functions

Normal Functions	Malfunction protection, Short-circuit protection, Lack of phase protection,Wrong sequence protection, Over voltage /Under voltage protection, Overload protection,,Safe start, Manual bypass, Indicating alarms, Security password, RS232/485 interface
Optional Functions	Isolation transformer, Surge protector (SPD), GPRS or Wifi communication,Auto bypass, Centralized monitoring, Touch screen HMI,App control

Dimensions

Model	Dimension (WxDxH)mm	Model	Dimension (WxDxH)mm	Model	Dimension (WxDxH)mm
DBW-10KVA	280*700*1270	DBW-20KVA	280*700*1270	DBW-30KVA	280*700*1270
DBW-50KVA	280*700*1270	DBW-80KVA	280*700*1270	DBW-100KVA	280*700*1270
SBW-15KVA	280*700*1270	SBW-180KVA	320x850x1470	SBW-800KVA	600*1300*2000
SBW-20KVA	280*700*1270	SBW-200KVA	400*1000*1670	SBW-1000KVA	800*1800*1900
SBW-30KVA	280*700*1270	SBW-250KVA	400*1000*1670	SBW-1200KVA	1000*1800*1900
SBW-50KVA	280*700*1270	SBW-300KVA	400*1000*1670	SBW-1500KVA	1000*1800*1900
SBW-80KVA	280*700*1270	SBW-350KVA	500*1150*1870	SBW-2000KVA	1000*1800*1900 2-Case
SBW-100KVA	320x850x1470	SBW-400KVA	500*1150*1870	SBW-3000KVA	1000*1800*1900 2-Case
SBW-120KVA	320x850x1470	SBW-500KVA	600*1300*2000	SBW-4000KVA	1000*1800*1900 3-Case
SBW-150KVA	320x850x1470	SBW-600KVA	600*1300*2000	SBW-5000KVA	1000*1800*1900 4-Case

*The above information may change without notice due to continious design
FAQ
Q 1. What is the payment term?
A. We accept T/T (30% deposit, balance before shipment).
Q 2. How long is the production lead time?
A. Usually it takes about 10-35days. For samples, usually within 4 weeks.
Q 3. How do you pack the products?
A. We use protective strong wooden case.
Q 4. What materials are used in transformers?
A. We have 2 types according to your requirement. One is 100% copper, the other one is copper with aluminum. Please be noted that the cost and life cycle are different for each type.
Q 5. Do you provide Form A or C/O ?
A. Yes, please contact us if you need.
Q 6. Do you accept to use our logo?
A. Yes, we accept OEM order if there's large quantity. However, we'll be appreciated if you use our MODERN logo.
Q 7. What is your MOQ?
A. Small capacity products like AVR, MOQ: 10 units.
Large capacity products, MOQ: 1 unit.
Q 8.Where is your market?
A. Our products are sold well in many countries around the world. We look forward to our further cooperation.
Q 9. What kind of certificate do you have ?
A. We've already obtained CE, ISO9001 and technical patent certificates.

---
