Slider Inserting Extremely Slim LED Light Box Hanging Standing Menu Board Backlit Panel

Product Description

Slider Inserting Extremely Slim LED Light Box Hanging Standing Menu Board Backlit Panel
Inserting light box, round corner
Aluminum profile, glass surface, not easy to be scratch

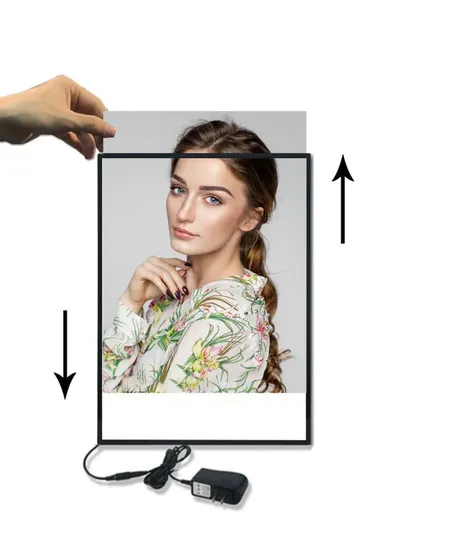

Inserting design, be convenient to change poster
Lighting panel to spread edge light to be backlit, soft brightness.
LED light source, power saving.
Can be fixed with feet to stand
Standard size is from A1 to A4.
DC12V, with adapter
Junlong Light box advantage
1.Extremely thin: LGP(light guide panel) technology makes the light box very slim, thickness is only 8-30mm.
2.High brightness, very steady: highest level A acrylic panel and self-developed silk print ink makes the light box has super brightness
which is 30% brighter than other light box.Uniform and soft light, not easy to get yellowing, makes the graphic looked very natural and real.
3.Power saving: we use imported LED SMD3014 strips as light source, it makes the light box has very low attenuation which is less
than 10% in the first 8,000hrs. Long lifespan which reaches 100,000hrs. More than 75% power can be saved compare to traditional light box.
4.Strict producing process: frames connect perfectly, seam joint between frames is less than 0.2mm, screws can not be seen
when opening the front cover, it's very beautiful and elegant.
5.Easy to change poster: Inserting design, it's very convenient to change poster.
6.Frame color: frame color can be customized according to customer's request.
7.Power adapter: DC12V certificated power supplier, safe and reliable.
8.Certification: Passed CE certification, some of the products have obtained the patents.

Standard Sizes for reference ( Size can be customized)

Model	Size	Specification(mm)			Thickness (mm)	Light source	Power (W)	Power supplier	Note
		Outer Size	Graphic size	View Size
JL-D-N	A4	225 x 304	210 x 297	205 x 284	10	LED	3 W	DC12V	Snap frame
	A3	312 x 427	297 x 420	292 x 407	10	LED	5 W	DC12V	Snap frame
	A2	435 x 601	420 x 594	415 x 581	10	LED	10 W	DC12V	Snap frame
	A1	610 x 848	594 x 841	590 x 828	10	LED	15 W	DC12V	Snap frame

---
