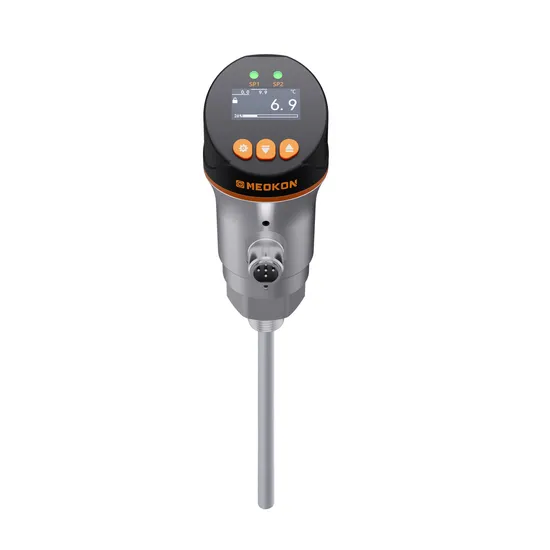

MD-S853t Digital /Electronic Temperature Sensor/ Switch /Monitor with Display Measuring Range

Product Description

Product Description: This is a digital temperature switch with OLED screen suitable for temperature measurement environment. The product adopts 304 stainless steel case and plastic case head design, with protection capability up to IP65 level. The product can be used in harsh environment. The product is equipped with a two-stage rotation structure, which can adjust the screen direction to ensure that customers can get a good viewing angle in different installation positions. This temperature switch is equipped with multiple function buttons, and users can quickly set upper and lower limits, hysteresis mode/window mode and other functions. Equipped with a standard 5-core M12 aviation plug cable, users can directly replace the old mechanical switch.
Technical Characteristics:
304 stainless steel shell, IP65 structural designDouble-stage rotation structure, quickly adjust the screen orientationOLED screen design, wide viewing angle range and high resolutionMultiple output modes optional: 4~20mA, PNP/NPN switchableDual alarm lights, multi-function button design

Product Parameters

Range	50~300ºC Customized customized available (e.g.-50~100)ºC)
Display accuracy( ºC)	± 0.3 + (± 0.1 % MS) (MS = set measurement range value)
Display	OLED
Response times	50ms
Power	12~28V
Output	Output 1: NPN or PNP (switchable) Output 2: NPN or PNP (switchable) Output 3: 4~20mA
Load current	<200mA
Temperature	(-20~65)ºCºC
Electrical connection	M12*1 connector
electrical protection	Anti-reverse connection protection, anti-electromagnetic interference
Threaded interface	G12(G1/2), G14(G1/4),M9( customized)
Material	304SS
Protection level	IP65
Accessories	Standard 5-core M12 aviation patch cord (1 meter)

Application: Machine tool drive monitoring. Automated production line High speed train heating pipes Other occasions to replace mechanical switches automatic control equipment DIMENSION

---
