High-Quality Chicken Cage/Broiler Cage/Poultry Farming in H-Cage Animal Husbandry

Product Description

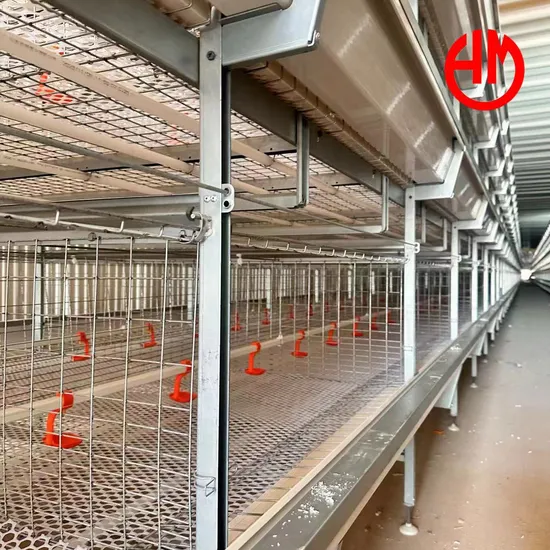

The H-shape broiler cage is divided into 4 layers.

About Us
For the last couple of years focus only on one thing : How to make your poultry farming result better.
We design, produce and install automatic poultry cage equipment with automatic drinking line,automatic feeding machine,automatic manure belt removing,automatic egg collecting and inner house climate control.
We offer you practical,economical and environmental-friendly solution all geared to future needs.
We have the installation experiences with 300 million poultry farm equipped with 12 tiers of layer cage system.
Our good quality comes from our advanced production equipment, and on the other hand from our mature design and lots of installation experience.Now,our installation quantity is about 1000 houses per year.
Come talk to us to start your modern poultry farm.

Cage Frame
1 The material strength of the cage frame Aluminized Magnesium Zinc plate can reach over 450MPa, and the galvanized coating content can reach 275g.
2. The legs are made of hot-dip galvanized sheet, which is firm and easy to clean. The distance between adjacent legs is 1250mm, making the frame firm and sturdy.
3. Due to precise processing, the diagonal tolerance is within 1.5mm. Accurate assembly, with an error of no more than 5.100px within a length of 37m.
Feeding System
Silo+South Africa auger feeding+Feeding truck+feeding trough
Soli : The climbing ladder of the silo is equipped with protective railings, and the middle fender is equipped with a flow slope for easy drainage. The lower cone plate has a perspective hole for easy viewing of the feed.

Auger line: The feeding system rotates the material through the spiral spring twisted auger, and there is a material level sensor at the end of the material line,
which automatically controls the opening and closing of the driving motor to achieve automatic feeding.

Advantages of the feeding truck: smooth operation, anti derailment electrical design, uniform feed distribution, and smooth feeding.
Feeding trough: The feed trough is made of PVC or Aluminized Magnesium Zinc plate material, with reliable quality and small seams with high straightness.

The trough support is made of Aluminized Magnesium Zinc plate , which is sturdy and reliable.The plug-in connection structure makes the slot body sturdy, stable, and precise, and the cage frame more reliable.
The flat bottom ensures even distribution of feed, allowing chickens to eat it completely without wasting feed.
Automatic Manure Cleaning
The motor and reducer of the automatic manure cleaning machine adopt a horizontal direct connection combination,with a compact structure, small volume and light weight.
The manure scraping plate has a fecal scraping degree of more than 95%, and the fecal belt is clean and clean.
The longitudinal fecal belt adopts a 1.2mm PP belt with strong toughness, smooth surface, and high strength to avoid deviation and fracture of the fecal belt
Automatic Drinking Water System
The drinking water system consists of a twisting dragon, a pressure regulator, a water line, nipples, and a drip tray.
The water pressure and height are adjusted according to the age of the chicken. Hand operated winch: Rotate the hand operated winch to adjust the waterline height.
Voltage regulator: Adjust the water output of drinking nipples for chickens of different ages.

Waterline: The water line is made of PVC material, and is equipped with a transparent steel wire hose and a centralized sewage pipeline at the end, making it easy to observe the water level and flush the water line.
There are three water dispensers on each unit of the PVC pipe for drinking water. The nipple of the water dispenser is 360 ° and hits the water, causing droplets to hang and stimulate drinking water.
These water dispensers are located in the middle of each cage. 21 broilers (2.5KG) per cage unit
Climate controller
Supports the collection of environmental data from 13 channels of temperature,1channel of humidity, 1channel of negative pressure,1channel of CO2,and1channel of NH3, with rich data collection and high precision.
36 ventilation levels and 26 fan units, to achieve the precise ventilation.
Smart gateway and cloud server can be connected to real-time and multi-terminal sharing of breeding data,so as to realize working at home and breeding on the cloud.

Chicken cage	Model	handpiece	end	Unit size	Height of breeding	breeding density	birds/units
	23B9LRC-4352.00	1555mm	1170mm	1800mm*1250mm*3100mm	710mm	50kg/m²	42
	19A9LRC-4272	1612mm	2003mm	1206mm×1400mm×2655mm	460mm	50kg/m²	17
	19A9LRC-4240	1612mm	2003mm	1206mm×1250mm×2655mm	460mm	50kg/m²	30

FAQ
1.Q: Are you the direct manufacturer or trading company?
A: We are the manufacturer for more than 10 years.
2. Q: Can the products be customized?
A: We can produce the products according to your detailed requirements.
3. Q: What's the MOQ of the products?
A: we always suggest you the economic quantities for you to save your budgets.
4. Q: What is the material of the cages and what is the thickness of the wire?
A: Our cages have cold galvanized wire kind, and hot galvanized wire kind. Different parts of the cage, we make the different wire diamater, they ranges from 3.6 to 2.3.
5. Q: Do you have other poultry equipment?
A: We have feed silo, warm furnace, temperature controller, medicine adding machine, incubator, feed mill, egg tray and so on.

---
