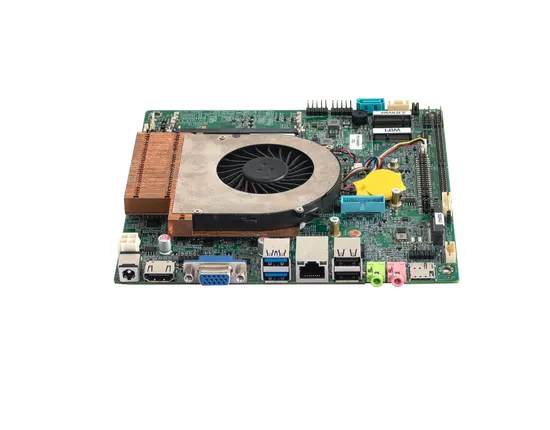

Elsky Meteor Lake Motherboard 17*17 Ultra5 125h DDR5 96GB M. 2 512GB USB Wi-Fi Win10 H-Dmi/VGA Four Display PC Motherboard DDR4

Product Description

Company Profile
In the year of 2009, Shenzhen ELSKY Technology Co., Ltd. is specially engaged in the research, production and sales of all kinds of Mini-ITX motherboard and Mini PC for POS, ALL-in-one PC, Digital Signage, Advertising LCD Player, Network, Tele communication and other industries. Meanwhile, we have OEM & ODM service for global customers. At present, our company has become one of the famous manufacturers for motherboard in China, with advanced equipment, more than 160 Skilled workers, scientific management, on time delivery, large production capacity and strong financial back up, market share rapidly expanding in global market.
With more than 15 years growth, we stick to focusing on Mini-ITX motherboard and Mini PC products; we stick to enhancing technological cooperation; we stick to increasing self-innovation; we stick to enlarging global sales! We do our best in making ELSKY a world-famous brand!
Our products have a good sale in China, Southeast Asia and Middle East, America, Europe, because the products design are suitable for the Market request with their stable performance and competitive price. Our company is confident to make great efforts, and sincerely welcomes friends worldwide to cooperate with us for mutual development.
Product Description

Size	170mm(L)*170mm(W)*21mm(H)(No fan thickness)
CPU	QM14U	Support Intel Meteor Lake14 gen Ultra 5 ,Ultra 7,Ultra 9 U/H series CPU
Power supply	1*DC_IN	The inner diameter of the DC head is 2.5MM and supports 12V / 19V The maximum power consumption of U series CPU is 57W, and it is recommended to use 12V 7A or 19V5A; H series CPU maximum core frequency power consumption is 115W, it is recommended to use 12V 10A or 19V 6.3A above the power supply;
	1*DC_ATX(4Pin)
Memory	2*SODIMM slot	NB-DDR5 memory,support 4800/5600MT/s memory,up to support 96GB
Internet function	1/2*RJ45_LAN port	Single network: the default support of Intel I219V gigabit network card; Dual network: support Intel I219V + Realtek 8111H Gigabit network card; Support network wake-up, PXE function;
	1*M.2-WIFI port	PCIE 4.0 signal, support for Key-E interface M.2 2230 WiFi / Bluetooth module
	1*M.2-4G/5G port	Support the Key-B interface M.2 5G (3052 / 3042) module or M.2 4G (3042) module
Display function	Integrated Intel Graphics / Intel Arc graphics supercore graphics card Support single display, double / three / four development replication, double / three / four development extension, SHELL double display;
	1*HDMI2.0 port	Support for 4K resolution 4096/3840*2160@60Hz
	1*HDMI_CON pin	Support for 4K resolution 4096/3840*2160@60Hz (16Pin,2*8Pin,2.0mm)
	1*VGA DB15 port	Support resolution 1920*1080@60Hz
	1*DP port(optional)	Support for DP + +, with 4K resolution 4096 / 3840 * 2160@60Hz
	VGA interface can support DP interface
	1*LVDS1/EDP2 pin	LVDS1 support 2K60Hz;EDP2 support 4K60Hz (30Pin,2*15Pin,2.0mm)
	1*EDP1 pin	With the EDP-C screen line, support for 4K resolution 4096 / 3840 * 2160@60Hz(30Pin,2*15Pin,2.0mm)
	1*LVDS_PWR1 pin	LVDS1/EDP2 operating voltage control pin (6Pin,2*3Pin,2.0mm)
	1*EDP_PWR pin	The EDP 1 operating voltage control pin (6Pin,2*3Pin,2.0mm)
	1*INVERT pin	The LVDS backlight control pin (6Pin,1*6Pin,2.0mm)
	Default support LVDS 1, optional support EDP 2, common pins, with EDP-B screen line
USB function	2*USB3.2 port	The rear standard USB3.2 Gen1 interface, the maximum transmission broadband of 5 Gbps
	2*USB2.0 port	The rear standard USB2.0 interface, the maximum transmission broadband of 480Mbps
	1*F_USB3_A pin	Front USB3.2 pin, one group has 2 * USB3.2 (19Pin,2*10Pin,2.0mm)
	1*F_USB1 pin	Front USB2.0 pin, one group has 2 * USB2.0 (9Pin,2*5Pin,2.54mm)
	1*F_USB2 pin	Front USB2.0 pin, one group has 2 * USB2.0 (9Pin,2*5Pin,2.54mm)
Sound function	Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller;
	1*LINE_OUT port	Support audio output (green)
	1*MIC_IN port	Support microphone input (red)
	1*INT_SPK pin	The power amplifier supports dual-channel output of 8 ohm 5 watt Speakers (4Pin,1*4Pin,2.0mm)
	1*F_AUDIO pin	Standard audio insert (9Pin,2*5Pin,2.54mm)
Hard Disk Function	1*M.2-SATA/PCIE port	Support PCIE 4.0 signal, support Key-M interface M.2 2280 hard disk, and support NVME and SATA protocol by default
	1*SATA1 port	Standard SATA hard disk interface, with support for SATA 3.0
	1*SATA_PWR pin	Hard disk power supply pin, the cable power 5V, 12V (4Pin,1*4Pin,2.54mm)
Switch function	1*F_PANEL pin	Switch, power light, hard disk light, restart pin (9Pin,2*5Pin,2.54mm)
	1*AUTO_SW pin	Hardware control power-on boot pin (3Pin,1*3Pin,2.0mm)
Other I/O	1*COM1 pin	Support for standard RS232 / RS422 / RS485 optional (BIOS settings) (9Pin,2*5Pin,2.54mm)
	1*COM2 pin	Only the standard RS232 is supported (9Pin,2*5Pin,2.54mm)
	1*COM3~6 pin	Only the standard RS232 is supported (39Pin,2*20Pin,2.0mm)
	1*JCOM1 pin	COM19th foot set 0V / 5V / 12V (6Pin,2*3Pin,2.0mm)
	1*MSIM1 slot	SIM card supported, SIM card required for 5G / 4G
	1*CLR_CMOS pin	Motherboard zero clearance, discharge plug pin (3Pin,1*3Pin,2.0mm)
	1*CPU_FAN pin	CPU fan pin, support for temperature control (4Pin,1*4Pin,1.25mm)
	1*SYS_FAN pin	System fan pin does not support temperature control at full speed (3Pin,1*3Pin,2.54mm)
	1*J_GPIO pin	GPIO control pin (10Pin,2*5Pin,2.0mm)
Operating environment	Working temperature:-10ºC~60ºC; Working humidity:5%~95% relative humidity, non-condensing
BIOS	AMI BIOS , Support power-on boot, scheduled boot, remote switch machine intelligent identificatio
Watch Dog	Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)
operating system	Support Windows 11,Windows 10,LINUX etc.

Price Explanation!!!
All of prices are barebone Motherboard(Motherboard+CPU).
If you need Memory,SSD,HDD,WIFI,License operating system,3G,4G,GPS,power adapter and other accessories, please contact us to get the prices.

Different configurations, different prices.
We will quote according to your request.
If you need to purchase in large quantities, or want to know about promotional activities/clearance sale, please contact us for the best price.
The prices of this product link are for reference only!
We don't update product links frequently. If you want to know the latest price, please contact us.
Notice:
The prices will vary with exchange rates and material costs.
All prices are subject to change without notice.
All product specifications are subject to change without notice.
Thank you for your attention and support! product use

Certifications
Packaging & Shipping
Packing
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
1Piece/Carton(G.W. : 1.0-1.5KG);
5Pieces/Carton(G.W. : 5.0-7.5KG);
10Pieces/Carton(G.W. : 10.0-15.0KG);
Shipping
3 working days after received full payment(In stock).
Express:DHL,Fedex,UPS,TNT,etc.

After Sales Service
Trade Term:
MOQ:1 piece;
Payment Term:T/T,Western Union,Paypal,Cash,etc.
Delivery: within 3~5 working days after received buyer's payment.
Shipping ways: DHL/FedEx/TNT/UPS, optional.
Product Support:After-Sales-Service,Technical Support,Product Manual,etc.
Warranty: 3 years for motherboard and 1 year for CPU.
You can also choose these accessories to buy together:
Intel CPU:
ATOM(Cedarview,Pineview,Cherry Trail,Pine Trail, Cedar Trail,Apollolake);
Intel 2~7th Gen.Processors(Bay Trail,Sandy Bridge,IVY Bridge,Haswell,Broadwell,
Skylake,Kaby lake);
Intel Processor Architecture Brand:ATOM,Celeron,Pentium,Core,etc.
Memory(RAM):1GB,2GB,4GB,8GB,16GB;
SSD(SATA or MSATA):2GB,4GB,8GB,16GB,32GB,64GB,128GB,240GB,etc;
HDD:80GB,128GB,160GB,256GB,320GB,500GB,750GB,1TB,2TB;
Integrated Graphics or Independent graphics;
Chassis/Case;
OPS Card;
Wifi/]/3G/4G/Fiber opticmodule;
Increasing COM,LAN,USB,VGA,LVDS,HD-MI,TV-Out,Optical fiber,LPT,IDE Port,DVI,GPIO,Parallel ports On motherboard;
......
FAQ
1. who are we?We are based in Guangdong, China, start from 2009,sell to Domestic Market(53.00%),Western Europe(8.00%),North America(5.00%),Africa(5.00%),South Asia(5.00%),Eastern Asia(4.00%),South America(3.00%),Eastern Europe(3.00%),Oceania(3.00%),Northern Europe(3.00%),Southeast Asia(2.00%),Mid East(2.00%),Central America(2.00%),Southern Europe(2.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Motherboard,Mini PC,OPS PC,Industrial PC,SSD4. why should you buy from us not from other suppliers?ELSKY is one of the top designer and manufacturer of industrial computer in China. As a high-tech company, ELSKY has a wide range of products covering MINI-ITX mainboard,Single Board computer, industrial computer, Panel PC, firewall and so on5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;Language Spoken:English,Chinese

---
