US$8,000.00-9,000.00
|
1 set
(MOQ)
|
Basic Info.
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal and Non Metal
Laser Classification
Gaseous Laser
Laser Technology
Laser Control Fault Cutting
Total Working Area
1200*900mm
Laser Type
CO2 Laser & Fiber Laser
A1 Laser Power
600W, Maximum 700W, Slw Brand
A2 Laser Power
90W, Maximum 100W, Reci W2
A3
50W Raycus Marking Head
Laser Head
Automatic Torch Height Controller Laser Head Struc
Driver and Motor Type
Leadshine Three Phases Stepper Motor and Driver
Guide Rail
Linear Square Guide Rail, Csk, Taiwan
Transmission Type
3m Belt Transmission
Control System
Ruida Control System 6332m (Live Focusing System)
Software
Metalcut & Rdworks V8
Industrial Chiller
Cw-6000 with 28meter Lift
Auto Lifting Table
up and Down 300mm, Ball Screw Type
Air Filter
with , 5 Layers
Working Table
Honey Comb and Knife Strip Double Working Table
Transport Package
Plywood Case
Specification
2140*1900*1450mm, 730KGS
Origin
Jinan City, Shandong Province, China
Production Capacity
200sets Per Month
Product Description

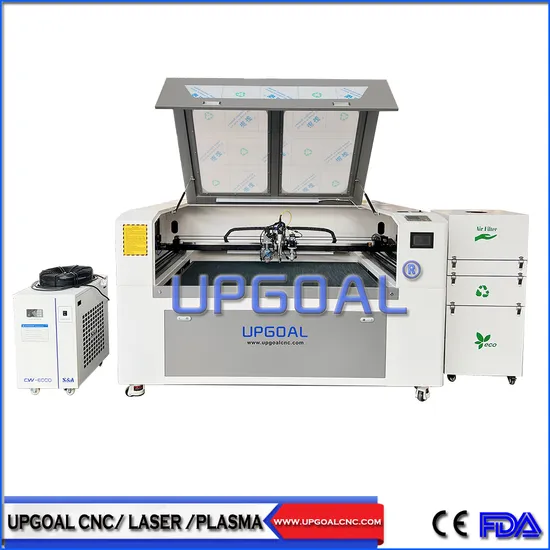

50W 90W 600W CCD Combined Fiber Co2 Laser Cutting Marking Engraving Machine for Metal Non Metal
Features
1. Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.
2. Equipped with three metal&non-metal laser cutting marking engraving head. Stainless steel, carbon steel, acrylic and wood can be cut.
With Ruida CCD Camera auto positioning, can do visual positioning, trademark cutting, image analysis. support feature recognition position positioning and MARK point auxiliary position positioning function, improves the working efficiency.
3. A1 head With famous SLW 600W folding Co2 laser tube, can for 3-3.5mm thickness stainless steel/carbon steel cutting, also can for 40mm wood cutting.
A2 with RECI 90W Co2 laser tube, used for non-metal materials engraving & thin cutting.
Marking head with Racus 50W fiber laser source, for all kinds of metal materials marking.
4.Advanced embedded RuiDa 6332M DSP real-time laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect
5. Specialized metal cutting using non-contact RuiDa live focusing system, ensuring same cutting quality for whole working table, no need further processing for the fracture section, high efficiency, long life time and more stable. With auto height controller for laser head, can track the metal material surface and adjust suitable focus length, ensuring the cutting quality.
7. Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality
Lead ball screw type auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance.
8. Adopting imported focus lens with high luminousness and mirror with high reflection ensure stable power transference and laser beam consistency. Lens and mirrors with cooling system, for high 600W.
9. Adopt 3phases Leadshine stepper driver with high dynamic response performance and loading capacity.
10. Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rails and blocks with 3M belt transmission ensured stable transmission, lower noise.
11. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti jamming capability.
12. Teyu Industrial water chiller CW-6000 with 28meter lift is equipped to ensure the machine can work last long time.
13. With roller and chuk type rotary axis ( diameter 80mm) for metal tube cutting & non-metal cylinder engraving.
14. Air filter with 5 layers filtration, during the laser engraving cutting machine using, can filtering a mass of gas & smoke which are harmful to human health when engraving & cutting processing materials. Has the feature of low noise, flexible using, and cover small area.
15. Ground wire
Technical Parameters
Working area
| 1200*900mm for each head
|
Laser Type
| A1: Folding co2 tube A2: Glass co2 laser tube A2: Fiber laser source
|
Laser tube power
| A1: 600W(maximum 700W),SLW, China A2: 90W( maximum 100W), Reci China A2: 50W, Raycus
|
Working table
| High strength knife strip and honey comb double working table
|
Auto lifting table
| Up and down 300mm
|
Oxygen control system
| Yes
|
Laser head
| Automatic torch height controller laser head structure for metal materials
|
Driver mode
| 3 phase stepper motor and driver(Leadshine brand )
|
Guide rail
| Linear square guide rail ( CSK,Taiwan)
|
Transmission
| Belt(3M)
|
Control panel
| English
|
Laser output control
| 1-100% software setting
|
Engraving speed
| 0-60000mm/min
|
Cutting speed
| 0-10000mm/min
|
Control system
| RuiDa control system 6332M (Live focus system)
|
Control software
| MetalCut & Rdworks V8
|
CCD camera
| RuIDa SV300, USB port
|
Design software when delivery
| CorelDraw
|
Control panel
| DSP offline
|
Resolution accuracy
| < 0.01mm
|
Location precision
| < 0.01mm
|
Highest scanning accuracy
| 2500DPI
|
Type of cooling
| Industrial chiller, CW-6000 (Teyu, S&A)
|
Water protection system
| Yes
|
Blow-off system
| Air pump and air blower
|
Working temperature
| 0-45 °C
|
Operating humidity
| 5-95% (without condensed water)
|
Voltage
| AC 220V/110V, 50/60Hz, single phase
|
Supporting picture format
| PLT,DST,DXF,BMP, DWG,AI,LAS,etc
|
Certificate
| CE/FDA
|
Applications
Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.
Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.
Reference Sample Photos
Reference Working Videos
https://youtu.be/9rxwFk1P7hk?si=HQy1qmf9uhRYnGTQ
Accessories and packing
For more information, just feel free to contact us!
